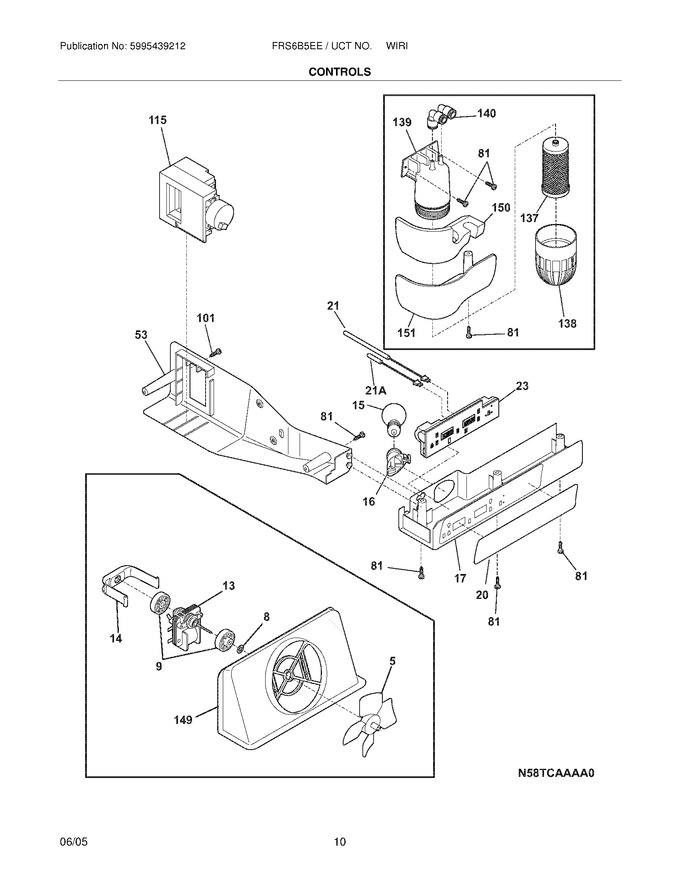

11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg,(2)			Immediately	$ 17.72
13	5303918549		Motor-evap Fan   (Replaces: 240369702)			Immediately	$ 88.16
14	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
17	241633501		Box-control,front		Appelez-nous	-
20	241604003		Label-control Box				$ 3.69
21	241608401		Thermistor-refr				$ 77.97
23	5304448584		Board-control,board & Housing		Appelez-nous	-
53	241608902		Box-control   (Replaces: 241608901)				$ 103.14
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
101	241637201		Screw-hex Hd No.8ab X 1 3/4		Appelez-nous	-
115	241600902		Damper Assy,w/seal				$ 274.83
137	WFCB		Filter,water ,carbon Canister ,rear ,with O`rings   (Replaces: 240389101)			Immediately	$ 66.15
138	240434401		Cup-water Filter			Immediately	$ 81.14
139	240434301		Housing-water Filtr			Immediately	$ 69.94
140	240545201		Elbow-water Tube				$ 73.71
149	241563501		Shroud-fan Orfice		Appelez-nous	-
150	240394102		Insulation-water Filter Cover				$ 51.40
151	240376002		Cover-water Filter				$ 55.91
21A	241608501		Thermistor-frzr				$ 50.32
F138	218904301		O-ring,wtr Filter Cup				$ 13.46
F149	241528306		Seal,shroud		Appelez-nous	-
F16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2)   (Replaces: 5303001259)				$ 17.01
NI	241628701		Harness-wiring,control Box				$ 146.58
NI	241641201		Insert				$ 4.68
