SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

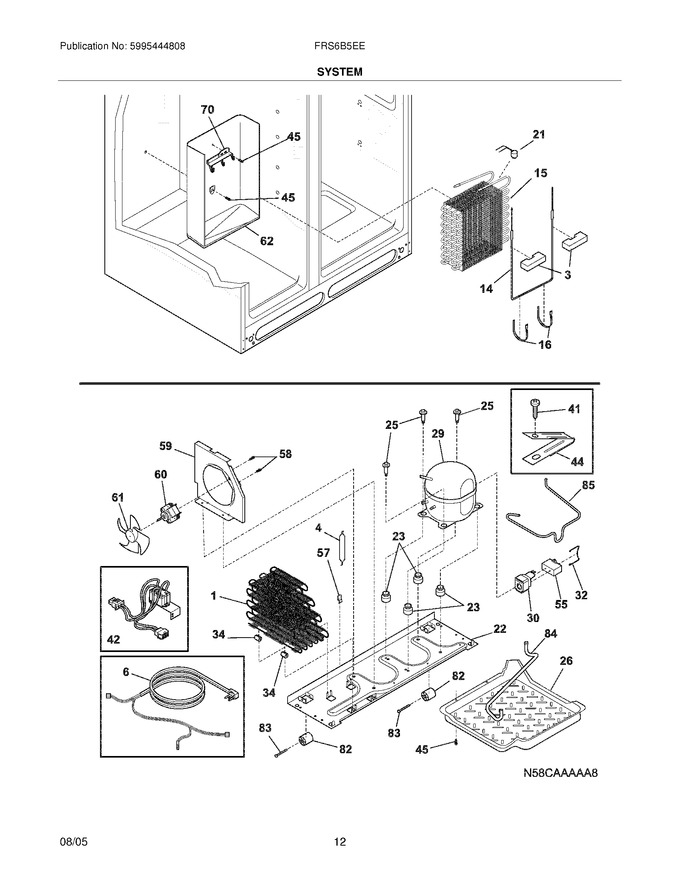

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526057		Condenser   (Replaces: 240333603)				$ 153.20
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 19.85
6	241586801		Harness-wiring,machine Compt				$ 177.08
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
22	240330008		Base-compressor Mtg		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf		Appelez-nous	-
26	241697603		Pan-defrost   (Replaces: 241637401)				$ 79.22
32	218973501		Clamp,elec Cont Mtg ,compressor				$ 21.97
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555001		Screw-no.8-32 X 3/8		Appelez-nous	-
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	5304430246		Bracket-cond Motor Assy		Appelez-nous	-
62	5304481642		Trough-drain   (Replaces: 240429402)				$ 327.07
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	241957901		Tube-drain,lower   (Replaces: 5304421068)				$ 60.96
85	240346201		Tube-connector,suction		Appelez-nous	-
F14	242044113		Heater-defrost   (Replaces: 240316107)			Immediately	$ 103.72
F15	5303918284		Evaporator Kit				$ 481.01
F21	5303918214		Thermostat-defrost,kit			Immediately	$ 33.42
F29	5303918316		Compressor,w/electricals		Appelez-nous	-
F30	5304491941		Starter   (Replaces: 241524605)			Immediately	$ 103.19
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F42	241661201		Relay				$ 158.86
F60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	5303918328		Heat Exchanger Kit,suction Line   (Replaces: 5303918213)				$ 367.18
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	241628701		Harness-wiring,control Box				$ 146.58
NI	241651601		Harness-wiring				$ 122.06
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
