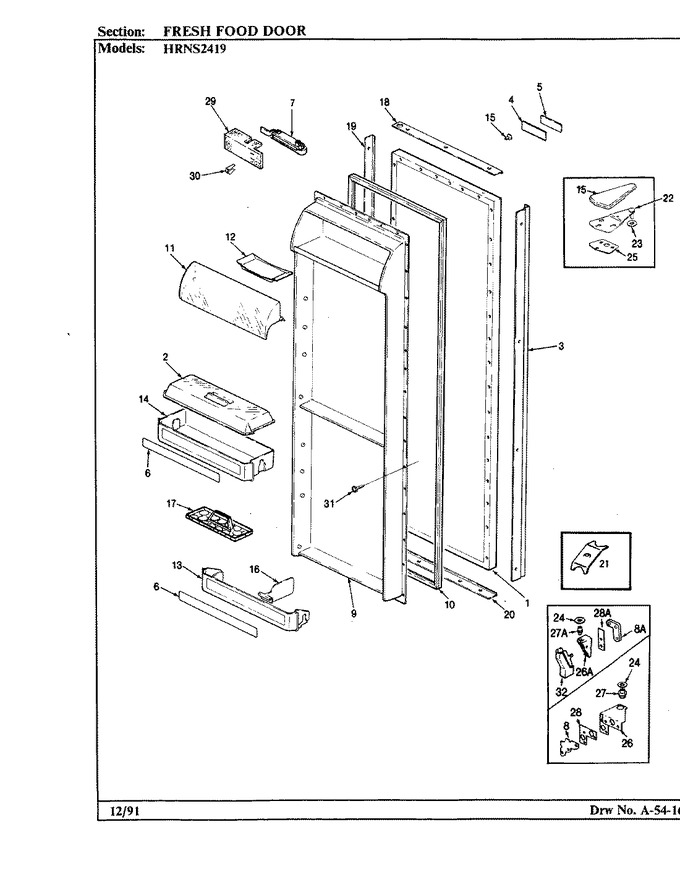

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72048-13-AM | Panel, F.f. Door (alm) |
|
- | |||||
| 2 | 65637-306 | Cover, Po Bucket |
|
- | |||||
| 3 | 68658-3 | Handle |
|
- | |||||
| 3 | 65275-37 | Screw, Handle |
|
- | |||||
| 4 | 69076-1 | Bezel, Nameplate |
|
- | |||||
| 5 | 68061-6 | Insert, Nameplate |
|
- | |||||
| 6 | 68121-59 | Insert |
|
- | |||||
| 7 | 54485-1 | Closer, Door |
|
- | |||||
| 9 | 65943-7 | Liner, Door |
|
- | |||||
| 10 | 66929-2 | Gasket |
|
- | |||||
| 11 | 66184-383 | Door, Dairy |
|
- | |||||
| 12 | 29936-2 | Tray, Butter |
|
- | |||||
| 13 | 65781-6 | Shelf Front |
|
- | |||||
| 14 | 65782-6 | Shelf, Pick-off |
|
- | |||||
| 15 | 65003-6 | Cover, Upper Hinge (wht) |
|
- | |||||
| 15 | 65003-3 | Cover, Upper Hinge (alm) |
|
- | |||||
| 16 | 66645-6 | Organizer Package |
|
- | |||||
| 17 | 60066-15 | Tray, Egg |
|
- | |||||
| 18 | 68203-2 | Trim, Perimeter (top) |
|
- | |||||
| 19 | 68205-4 | Trim, Perimeter (side) |
|
- | |||||
| 20 | 68204-2 | Trim, Perimeter (bottom) |
|
- | |||||
| 21 | 65275-38 | Screw |
|
- | |||||
| 21 | 65275-45 | Screw |
|
- | |||||
| 21 | 66799-1 | Achor, Screw |
|
- | |||||
| 22 | 53709-22 | Hinge, Upper |
|
- | |||||
| 22 | WP3-24838-048 | Screw (Replaces: 9986-87) |
|
$ 7.00 | |||||
| 23 | WP52185-1 | Washer (Replaces: 52185-1) |
|
Immediately | $ 9.47 | ||||
| 24 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) |
|
Immediately | $ 45.86 | ||||
| 25 | 65031-1 | Shim, Upper Hinge |
|
- | |||||
| 26 | 67714-10 | Hinge, Lower |
|
- | |||||
| 26 | 403100-1 | Screw |
|
- | |||||
| 27 | 68788-1 | Hinge Pin |
|
- | |||||
| 28 | 60626-1 | Shim, Lower Hinge |
|
- | |||||
| 29 | 52613-1 | Insulation, Closer |
|
- | |||||
| 30 | 52614-1 | Bracket, Closer |
|
- | |||||
| 30 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 31 | 9986-12 | Screw,door Liner |
|
- | |||||
| 32 | 68978-1 | Cover, Lower Hinge (blk) |
|
- |
