01 - Freezer Compartment

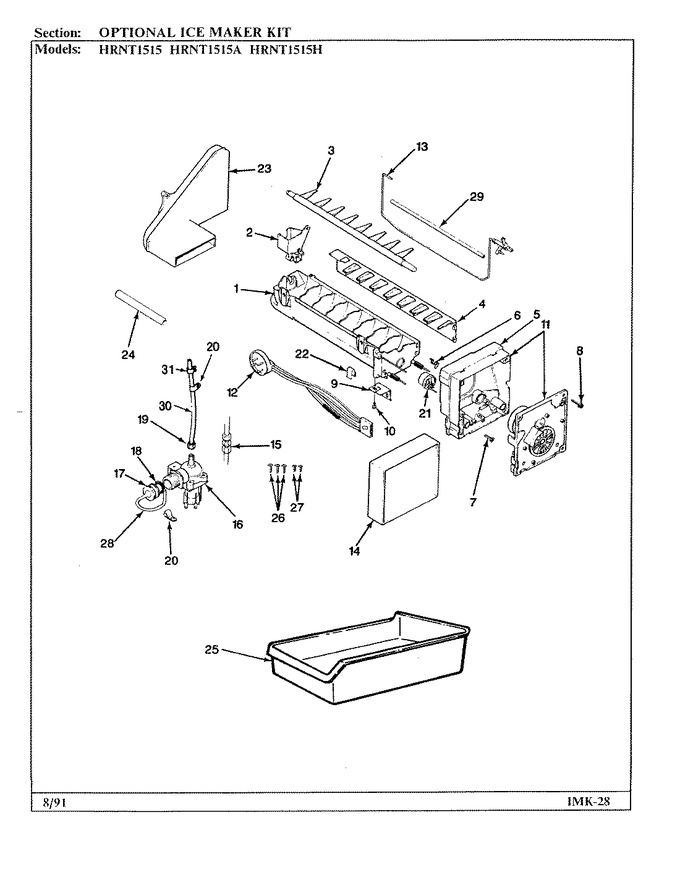

02 - Optional Ice Maker Kit
03 - Shelves & Accessories
04 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7824706Q | Mold & Heater Assy. (Replaces: 95098-1) |
|
Immediately | $ 150.62 | ||||
| 1 | 95099-1 | Grease, Silicone |
|
- | |||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) |
|
$ 46.07 | |||||
| 3 | WP627843 | Ejector, Ice (Replaces: 95101-1) |
|
$ 75.24 | |||||
| 4 | WP2182124 | Stripper, Ice (Replaces: 95102-1) |
|
$ 77.45 | |||||
| 5 | WP2195914 | Support, Module Housing (Replaces: 95103-1) |
|
$ 94.11 | |||||
| 6 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) |
|
$ 9.95 | |||||
| 7 | 95105-1 | Screw |
|
- | |||||
| 8 | WP681249 | Screw (Replaces: 95106-1) |
|
Immediately | $ 7.07 | ||||
| 9 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) |
|
$ 83.70 | |||||
| 10 | WP489128 | Screw, Bracket (Replaces: 95108-1) |
|
$ 9.79 | |||||
| 11 | D7824706Q | Module, Ice Maker (Replaces: 95109-1) |
|
Immediately | $ 150.62 | ||||
| 11 | 95110-1 | Screw,motor To Module Assembly |
|
- | |||||
| 12 | 67672-1 | Wire Harness, Ice Maker |
|
- | |||||
| 13 | 68112-1 | Arm, Sensor |
|
- | |||||
| 14 | 68328-2 | Cover, Ice Maker |
|
- | |||||
| 15 | WPW10296793A | Union, Compression (Replaces: 54267-1) |
|
$ 10.93 | |||||
| 16 | 4318047 | Valve, Water (Replaces: 60184-3) |
|
Immediately | $ 66.68 | ||||
| 17 | 24685-1 | Nut, Inlet Tubing |
|
- | |||||
| 18 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 19 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 20 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 20 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 21 | 95093-1 | Cement, Alumilastic (4 Oz.) |
|
$ 49.64 | |||||
| 21 | WP627985 | Thermostat (Replaces: 95092-1) |
|
Immediately | $ 98.26 | ||||
| 22 | WP628379 | Clamp, Wire Harness (Replaces: 68118-1) |
|
$ 9.51 | |||||
| 23 | 68412-3 | Duct, Air (23` Models) |
|
- | |||||
| 23 | 68412-2 | Duct, Air (19` & 21` Models) |
|
- | |||||
| 23 | 68412-1 | Duct, Air (15` & 17` Models) |
|
- | |||||
| 23 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 24 | 67666-5 | Tube, Water Entry |
|
- | |||||
| 25 | 68327-1 | Pan, Ice |
|
- | |||||
| 26 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 27 | WP250830 | Screw (Replaces: 401017-1) |
|
$ 7.16 | |||||
| 28 | 60219-1 | Inlet Tubing Assembly |
|
- | |||||
| 29 | 67556-1 | Sleeve, Sensor Arm |
|
- | |||||
| 30 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-7) |
|
$ 11.19 | |||||
| 31 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) |
|
$ 9.95 |
