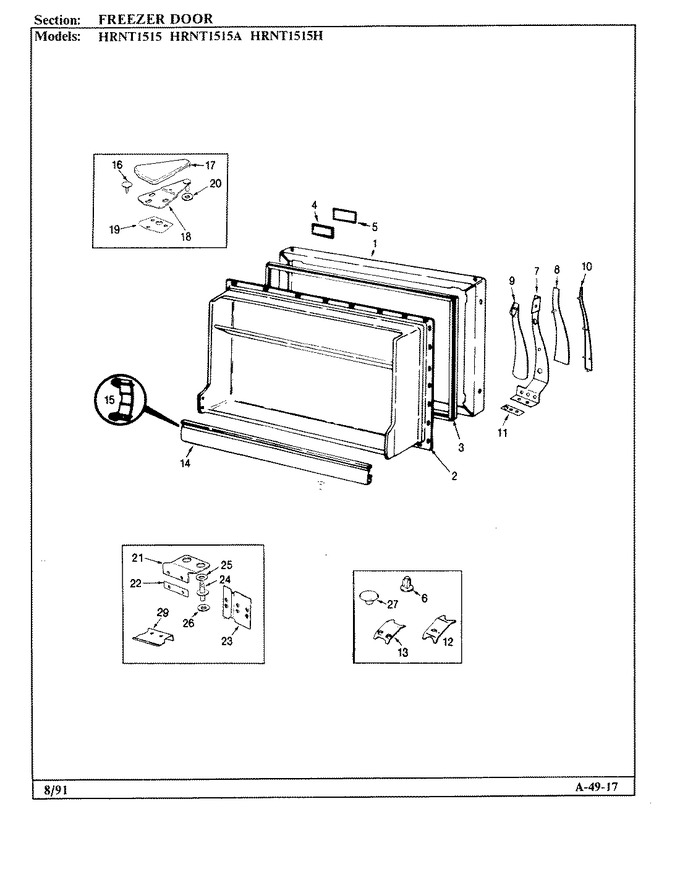

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-1-AM		Panel, Frz. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65930-5		Liner, Door		Appelez-nous	-
3	66199-1		Gasket, Door		Appelez-nous	-
4	69076-1		Bezel, Nameplate		Appelez-nous	-
5	68061-6		Insert, Nameplate		Appelez-nous	-
6	55782-6		Plug Button (almond)		Appelez-nous	-
7	9986-122		Screw		Appelez-nous	-
7	66255-1		Door Handle		Appelez-nous	-
8	68036-4		Insert (alm)		Appelez-nous	-
9	65275-53		Screw		Appelez-nous	-
9	60580-6		Insert		Appelez-nous	-
10	68048-5		Insert, Vinyl		Appelez-nous	-
11	68776-1		Shim Handle----na		Appelez-nous	-
12	56209-3		Clip, Stop Screw		Appelez-nous	-
13	60123-2		Clip, Stop Screw		Appelez-nous	-
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
15	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
16	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
17	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
18	53709-20		Hinge, Upper		Appelez-nous	-
19	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	54233-1		Washer				$ 7.71
21	68811-2		Hinge, Center		Appelez-nous	-
22	68812-1		Shim, Center Hinge		Appelez-nous	-
23	65275-24		Screw		Appelez-nous	-
23	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
24	67322-1		Pin, Center Hinge		Appelez-nous	-
25	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
26	54233-2		Washer		Appelez-nous	-
27	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
28	60030-4		Door Stop		Appelez-nous	-
28	9986-122		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
