SELECT A DIAGRAM
01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Optional Ice Maker
04 - Shelves & Accessories
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:

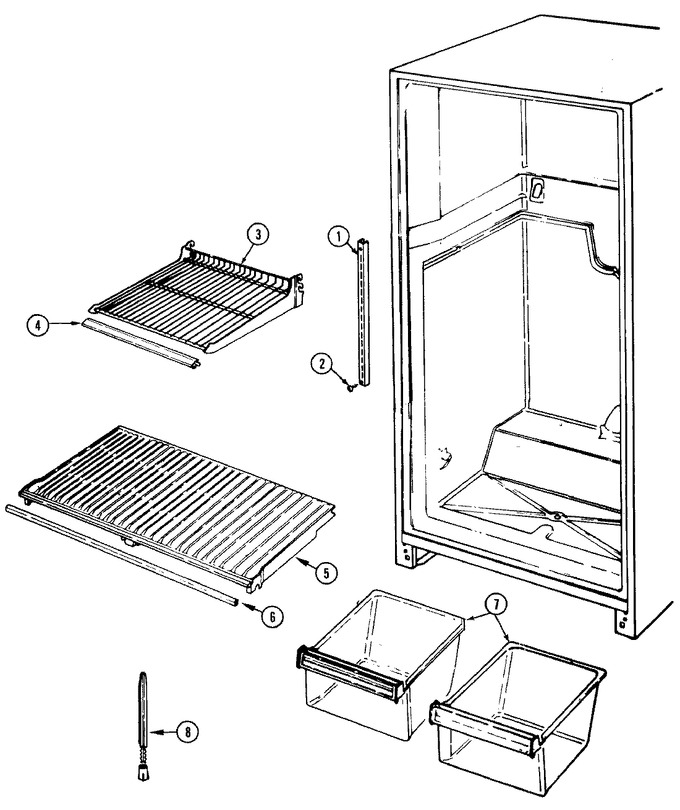

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 60417-28 | Shelf, Wire | 10 |
|
- | ||||
| 4 | 60414-61 | Trim | 10 |
|
- | ||||
| 5 | 66834-1 | Shelf, Crisper | 10 |
|
- | ||||
| 6 | 60454-9 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 7 | 68221-122 | Pan, Crisper | 10 |
|
- | ||||
| 8 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | 10 |
|
$ 3.35 | ||||
| 8 | 60148-4 | Seal, Crisper Shelf | 10 |
|
- |
