SELECT A DIAGRAM

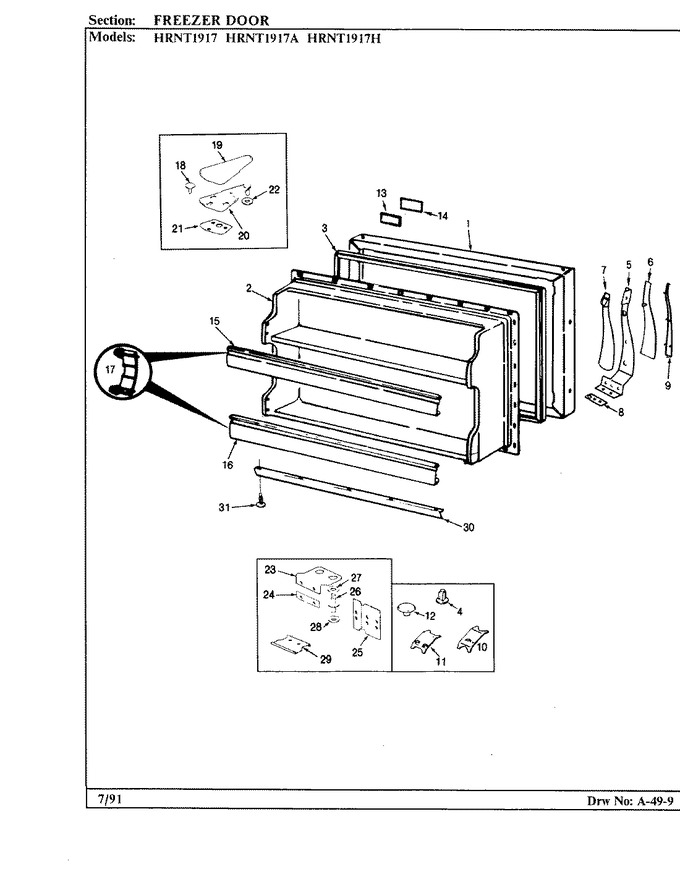

01 - Freezer Door


02 - Fresh Food Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-1-AM		Panel, Frz. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	65928-18		Liner, Door		Appelez-nous	-
3	66199-5		Gasket, Frz. Door		Appelez-nous	-
5	66255-1		Door Handle		Appelez-nous	-
5	9986-122		Screw		Appelez-nous	-
7	65275-53		Screw		Appelez-nous	-
8	68776-1		Shim Handle----na		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
13	69076-1		Bezel, Nameplate		Appelez-nous	-
14	68061-6		Insert, Nameplate		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-123)				$ 129.55
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-134)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	53709-20		Hinge, Upper		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	54233-1		Washer				$ 7.71
22	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
23	68811-2		Hinge, Center		Appelez-nous	-
24	68812-1		Shim, Center Hinge		Appelez-nous	-
25	65275-24		Screw		Appelez-nous	-
25	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
26	67322-1		Pin, Center Hinge		Appelez-nous	-
27	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
28	54233-2		Washer		Appelez-nous	-
29	60030-1		Door Stop		Appelez-nous	-
29	9986-122		Screw		Appelez-nous	-
30	68544-2		Gasket, Secondary		Appelez-nous	-
31	52447-4		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
