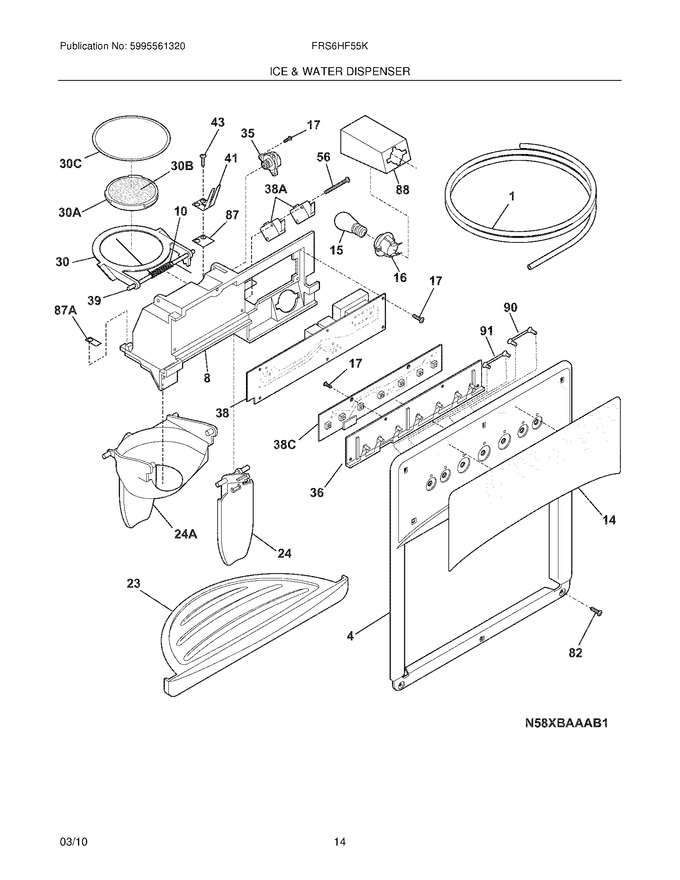

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	241678703		Cover-module,white   (Replaces: 241678701)			Immediately	$ 75.02
8	241680505		Module-dispenser				$ 92.19
10	241688901		Spring-torsion			Immediately	$ 21.27
14	241611207		Label-module Cover,white		Appelez-nous	-
15	241689401		Light Bulb		Appelez-nous	-
16	240548901		Socket-light				$ 63.70
17	241679801		Screw				$ 14.18
23	241649007		Drip Tray,white   (Replaces: 241649001)				$ 29.58
24	241682001		Actuator-water,white			Immediately	$ 57.41
30	241688401		Door Assy-ice Chute				$ 49.62
35	241689301		Damper-rotary				$ 70.52
36	241680301		Carrier				$ 40.58
39	241688801		Pin-hinge				$ 43.24
41	241689001		Spring-actuator				$ 21.97
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 13.46
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
87	241688302		Bearing Plate				$ 19.85
88	241686101		Shield-light				$ 36.02
90	241680201		Light Pipe,reflector ,long				$ 91.40
91	241680101		Light Pipe,reflector ,short				$ 60.25
24A	241681901		Actuator-ice,white				$ 80.80
30A	241688501		Door Center				$ 52.97
30B	241688601		Insulation-door				$ 63.17
30C	241688701		Door Seal				$ 40.46
87A	241688301		Bearing Plate				$ 19.85
F38	241708202		Board-power				$ 393.75
F38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 241689101)			Immediately	$ 8.60
F38C	241680001		Harness-ribbon Cable		Appelez-nous	-
F38C	241708309		Board-control				$ 284.81
NI	218976418		Tube-water Inlet,inlet Valve ,to Filter				$ 64.49
NI	218515403		Clip-grille				$ 29.06
NI	241686201		Insulator-electrical		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
