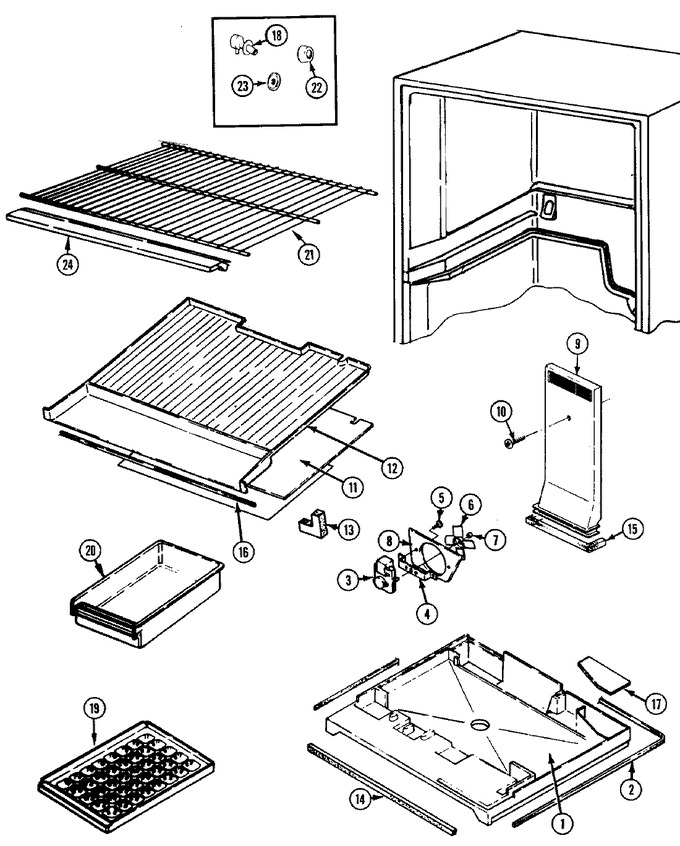

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	69406-1		Tray, Styrofoam Mullion	10	Appelez-nous	-
2	69414-4		Seal, Mullion Tray	10	Appelez-nous	-
3	69106-3		Motor, Evaporator Fan	10	Appelez-nous	-
3	406062-1		Screw	10	Appelez-nous	-
4	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
5	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
6	69107-1		Blade, Evaporator Fan	10	Appelez-nous	-
7	420092-900		Washer, Spring	10	Appelez-nous	-
8	69811-4		Orifice Assy., Damper	10	Appelez-nous	-
9	68592-4		Air Tunnel	10	Appelez-nous	-
10	W11233072		Screw   (Replaces: 400015-31)	10		Immediately	$ 12.62
11	66403-2		Cover, Evaporator	10	Appelez-nous	-
12	69400-1		Bottom, Frz.	10	Appelez-nous	-
13	68946-2		Seal	10	Appelez-nous	-
14	69562-2		Seal, Mullion Tray (front)	10	Appelez-nous	-
15	66325-34		Seal, Air Tunnel----na	10	Appelez-nous	-
16	69413-3		Magnet	10	Appelez-nous	-
17	66480-6		Cover, Plenum	10	Appelez-nous	-
18	68307-1		Grommet, Water Entry	10	Appelez-nous	-
19	WP841180A		Tray, Ice   (Replaces: 59281-2)	10		Immediately	$ 41.00
20	68327-1		Pan, Ice	10	Appelez-nous	-
21	60438-30		Shelf, Frz	10	Appelez-nous	-
21	400019-1		Screw	10	Appelez-nous	-
21	60313-1		Cup, Shelf	10	Appelez-nous	-
21	66101-1		Stud, Shelf	10	Appelez-nous	-
22	70146-3		Plug Button (alm)	10	Appelez-nous	-
22	68387-1		Cap, Grommet	10	Appelez-nous	-
22	70146-2		Plug Button	10	Appelez-nous	-
23	68187-1		Cap, Connector	10	Appelez-nous	-
24	60414-43		Trim, Front-full	10	Appelez-nous	-
