Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 R0156054 Outer Door Appelez-nous -
12 10908902 Wrapper-oc (ss) Appelez-nous -
31 10822301 Handle, Door Appelez-nous -
51 R0150198 Kit, Latch Appelez-nous -
101 12237801 Door-inner Appelez-nous -
102 12148701 Weld, Panel Appelez-nous -
111 12108503 Glass, Inner Appelez-nous -
121 12297401 Plate, Tap Appelez-nous -
122 12239101 Cover-motor Appelez-nous -
141 C8893502 Spring, Door Latch Appelez-nous -
151 C8961811 Hinge-door Appelez-nous -
161 D7683907 Weldment-inner Door Appelez-nous -
171 M0270528 Washer Appelez-nous -
191 A4539601 Pop Rivet Appelez-nous -
211 M0010214 Rivet A K Appelez-nous -
222 10853102 Grille, Air Inlet Appelez-nous -
232 M0274066 Washer, Nylon Appelez-nous -
291 12285602 Cover-hole Appelez-nous -
602 10785602 Cover Light (ss) Appelez-nous -
612 M0288213 Clip Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

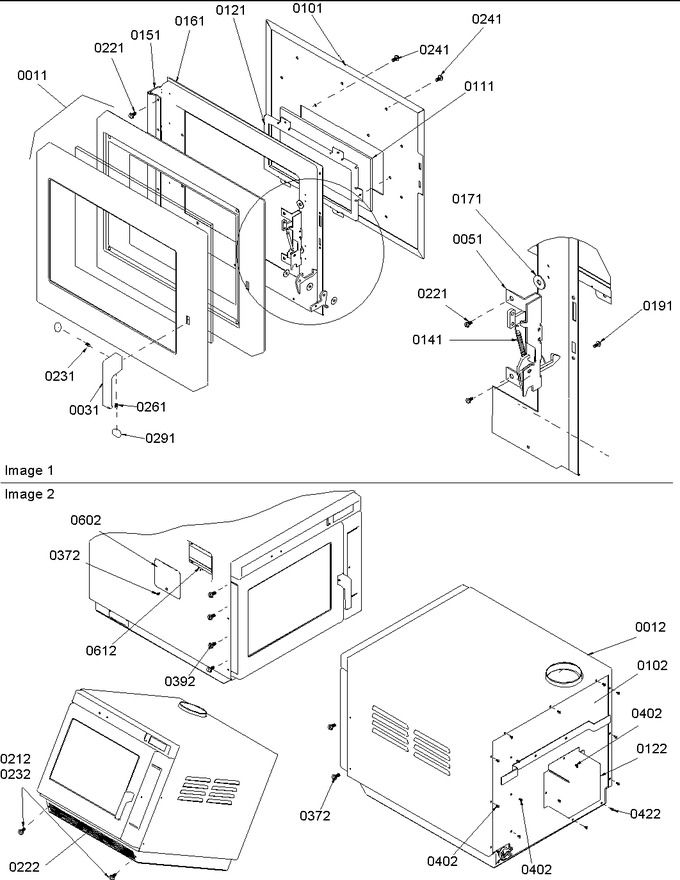

Diagram for HSL2030 (BOM: P1305202M)
