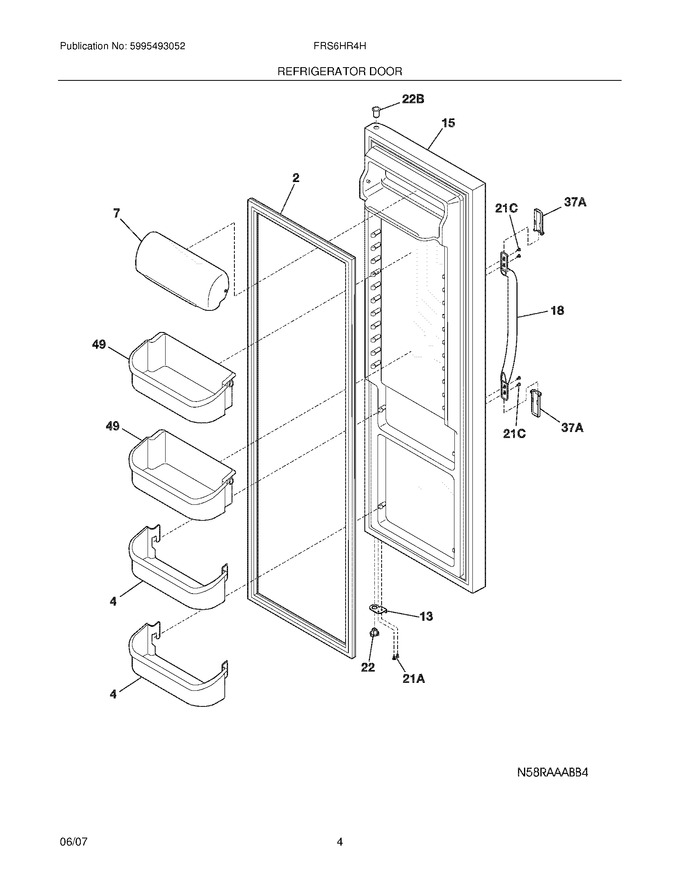

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 60.25 | |||||
| 15 | 241629345 | Door-refr,black ,complete Assy |
|
- | |||||
| 18 | 218762703 | Handle-door,black |
|
$ 67.04 | |||||
| 22 | 240328203 | Bearing-hinge,black ,closer |
|
Immediately | $ 27.23 | ||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 85.64 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 21C | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 37A | 215870636 | Trim-handle,2.47`` ,black ,w/satin Al Band |
|
$ 76.91 | |||||
| F2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 241674805) |
|
Immediately | $ 225.62 |
