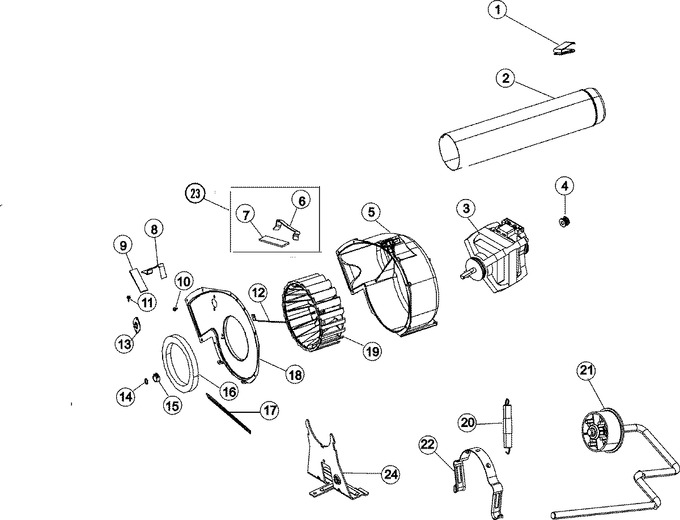

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001572		Clip, Vent Pipe Ground	10	Appelez-nous	-
2	53-0134		Duct, Exhaust	10	Appelez-nous	-
3	WP681414		Screw   (Replaces: 25-7733)	10		Immediately	$ 7.07
3	W10410996		Motor (115v-60hz 1/3hp)   (Replaces: 31001589)	10		Immediately	$ 274.59
4	WP31001535		Pulley, Motor (60hz)   (Replaces: 31001535)	10		Immediately	$ 78.86
5	53-1801		Housing, Blower	10	Appelez-nous	-
6	WP31001470		Glide, Tumbler (lt)   (Replaces: 31001470)	10			$ 67.36
7	WP31001356		Pad, Glide   (Replaces: 31001356)	10			$ 76.16
8	WP31001469		Glide, Tumbler (rt)   (Replaces: 31001469)	10			$ 66.66
9	WP31001356		Pad, Glide   (Replaces: 31001356)	10			$ 76.16
10	WP33002917		Screw   (Replaces: 25-7807)	10		Immediately	$ 6.90
11	WP489478		Screw   (Replaces: 25-7890)	10			$ 6.98
12	53-1026		Guide, Vane Inlet	10	Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-2134)	10		Immediately	$ 7.04
13	WP31001192		Thermostat, Control   (Replaces: 31001192)	10			$ 127.37
13	31001088		Thermostat, Control	15			$ 42.96
14	25-7855		Ring, Retaining	10			$ 8.67
15	WP312967		Clamp   (Replaces: 25-7823)	10		Immediately	$ 10.68
16	31001541		Seal, Blower/collector Duct	10			$ 24.55
17	53-1625		Brace, Tumbler Support	10			$ 26.64
18	53-1934		Cover, Blower Housing	10	Appelez-nous	-
19	W11497304		Wheel, Blower (deepd)   (Replaces: 31001317)	10		Immediately	$ 68.16
20	31001465		Spring, Idler	10			$ 46.05
21	31001710		Idler Arm Assembly	10			$ 38.72
22	WP660658		Clamp, Motor   (Replaces: 53-0214)	10			$ 7.05
23	LA-1006		Glide Kit, Tumbler	10		Immediately	$ 25.12
24	31001571		Screw, 10-24x0700 Hxwshrhd Ty	10	Appelez-nous	-
24	31001570		Bracket, Motor	10			$ 7.92
