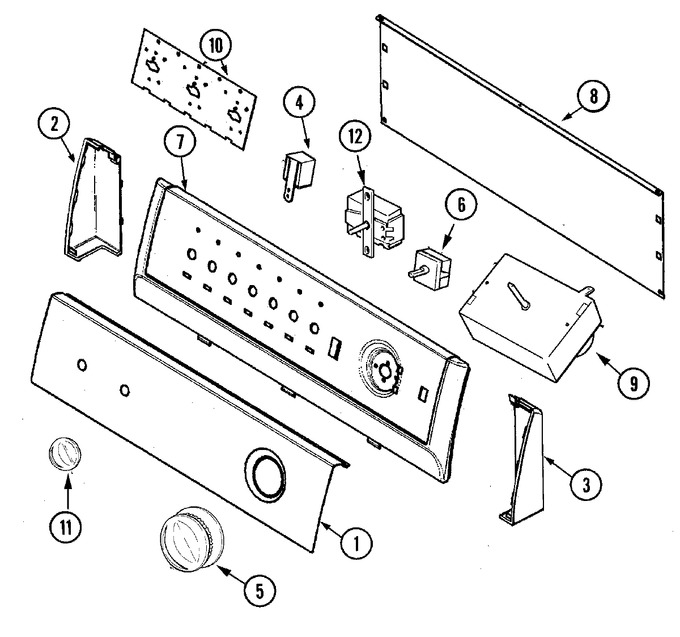

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001568		Panel, Control	10	Appelez-nous	-
2	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
2	21001519		Endcap (wht-lt)	10	Appelez-nous	-
3	21001523		Endcap (wht-rt)	10	Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
4	33001848		Signal, End Of Cycle (chime)	10	Appelez-nous	-
5	31001567		Knob/skirt, Timer	10			$ 25.20
6	21001993		Switch, Rotary (4 Pos)	10	Appelez-nous	-
7	21001965		Frame, Control Panel, Support	10	Appelez-nous	-
8	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
9	31001731		Timer	10			$ 158.78
10	21001603		Shield, Control (3 Pos.)	10	Appelez-nous	-
11	WP21002070		Knob, Selector (gray)   (Replaces: 21001986)	10			$ 20.10
12	31001704		Resistor Asm Temperature	10	Appelez-nous	-
12	31001447		Switch, Temperature	10	Appelez-nous	-
13	31001491		Harness, Wire	10	Appelez-nous	-
13	21001980		Lead Assembly (ground)	10	Appelez-nous	-
13	31001559		Lead Assembly (buzzer)	10	Appelez-nous	-
