SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Ice Cream Maker


04 - Unit Compartment & System

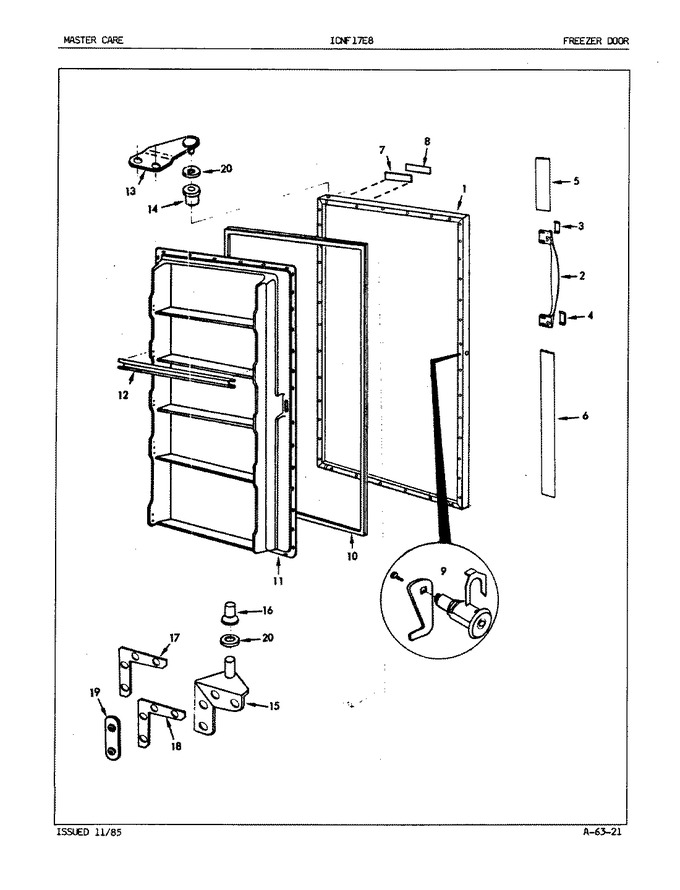

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	047662-11		Outer Panel		Appelez-nous	-
1	046975-01		Foam Block		Appelez-nous	-
1	3-24898-007		Vent Plug   (Replaces: Y04699801)				$ 9.72
1	046977-02		Insulation		Appelez-nous	-
2	60194-2		Door Handle		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
3	65182-5		Insert		Appelez-nous	-
4	65182-7		Insert		Appelez-nous	-
5	64733-11		Trim		Appelez-nous	-
6	64733-12		Trim		Appelez-nous	-
7	048434-02		Bezel		Appelez-nous	-
8	049338-17		Nameplate		Appelez-nous	-
9	61857-2		Lock Assembly		Appelez-nous	-
9	Y04689701		Lock Body		Appelez-nous	-
9	048417-04		Washer, Lock		Appelez-nous	-
9	WP4159193		Screw   (Replaces: Y04689705)				$ 4.29
9	Y04689704		Key		Appelez-nous	-
9	Y04689703		Clip		Appelez-nous	-
9	3-35284-001		Lock Bolt   (Replaces: Y04689702)				$ 24.42
10	045283-03		Door Gasket		Appelez-nous	-
11	Y04589901		Screw		Appelez-nous	-
11	Y04647905		Inner Panel		Appelez-nous	-
12	045521-13		Trim		Appelez-nous	-
13	WP8204624		Screw, Upper Hinge   (Replaces: Y04637703)				$ 14.99
13	048566-02		Door Hinge		Appelez-nous	-
14	55781-3		Bushing		Appelez-nous	-
14	049381-01		Tapping Plate		Appelez-nous	-
15	WP8204624		Screw, Upper Hinge   (Replaces: Y04637703)				$ 14.99
15	048566-01		Door Hinge		Appelez-nous	-
15	044156-01		Screw		Appelez-nous	-
16	55781-3		Bushing		Appelez-nous	-
17	Y04529701		Shim		Appelez-nous	-
18	Y04529702		Shim		Appelez-nous	-
19	045434-01		Nut		Appelez-nous	-
20	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
