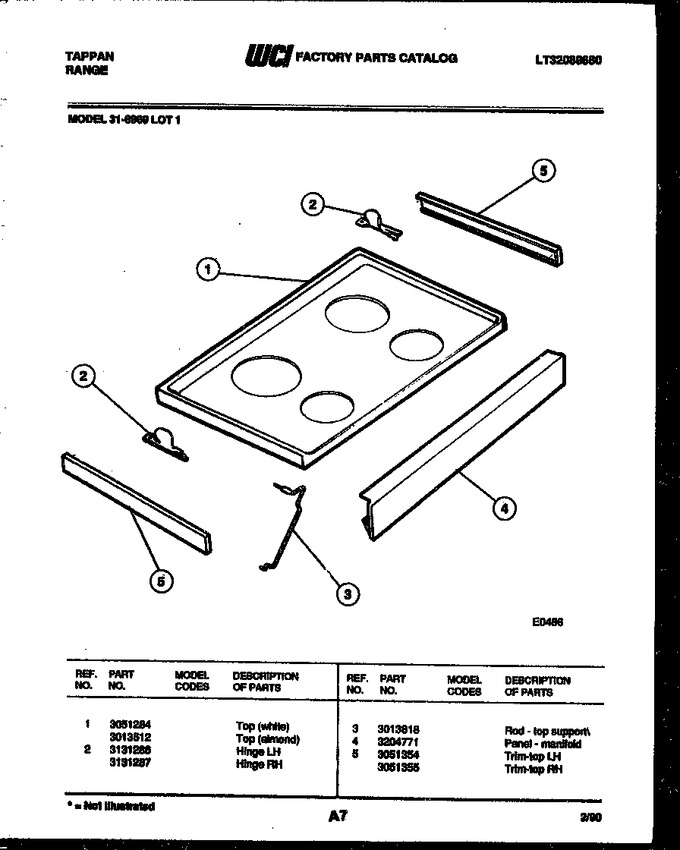

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051284 | Top (white) |
|
- | |||||
| 2 | 3131286 | Hinge (lh) |
|
- | |||||
| 3 | 3013818 | Rod, Top Support |
|
- | |||||
| 4 | 3204771 | Panel - Manifold |
|
- | |||||
| 5 | 3051354 | Trim-top Lh |
|
- | |||||
| 2A | 3131287 | Hinge (rh) |
|
- | |||||
| 5A | 3051355 | Trim-top Rh |
|
- |
