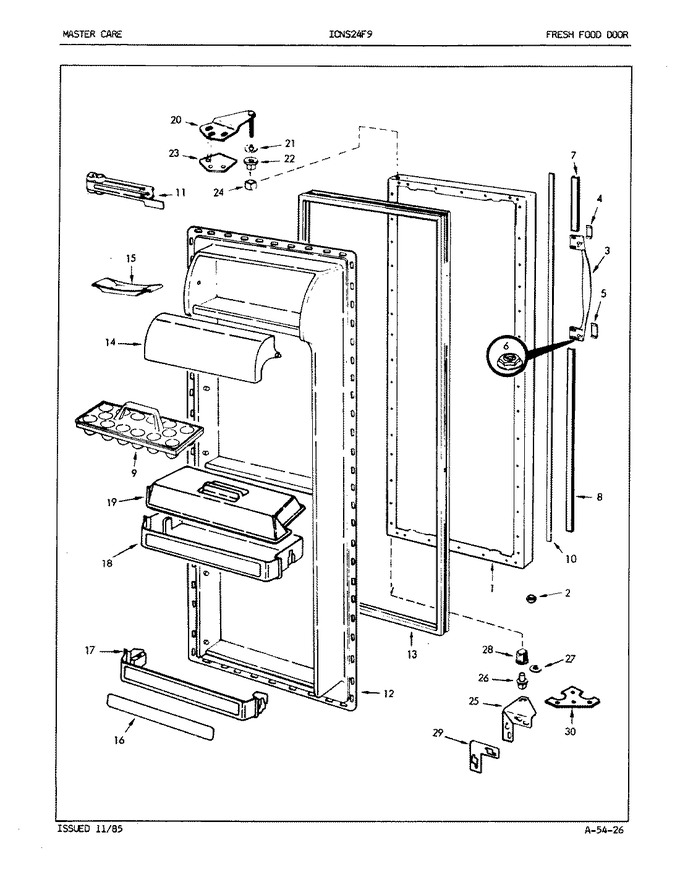

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	62391-15-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	60194-1		Handle		Appelez-nous	-
4	65182-4		Insert		Appelez-nous	-
5	65182-1		Insert		Appelez-nous	-
6	434003-506		Fastener		Appelez-nous	-
7	65775-3		Upr Handle Ext		Appelez-nous	-
8	65775-4		Lwr Handle Ext		Appelez-nous	-
9	60066-3		Tray, Egg		Appelez-nous	-
10	65772-1		Trim		Appelez-nous	-
11	52613-1		Insulation, Closer		Appelez-nous	-
11	52614-1		Bracket, Closer		Appelez-nous	-
11	54485-1		Closer, Door		Appelez-nous	-
12	9986-12		Screw,door Liner		Appelez-nous	-
12	65641-1		Liner, Door		Appelez-nous	-
13	53712-2		Gasket		Appelez-nous	-
14	65589-202		Door, Dairy		Appelez-nous	-
15	29936-2		Tray, Butter		Appelez-nous	-
16	65571-2		Insert		Appelez-nous	-
17	65781-2		Shelf Front		Appelez-nous	-
18	65782-2		Pickoff Shelf		Appelez-nous	-
19	65637-202		Cover		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
21	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
22	66036-2		Bushing, Upper Hinge		Appelez-nous	-
23	65031-1		Shim, Upper Hinge		Appelez-nous	-
24	55990-1		Seal Sleeve		Appelez-nous	-
25	400062-1		Screw		Appelez-nous	-
25	60630-12		Hinge, Lower		Appelez-nous	-
25	403062-5		Screw		Appelez-nous	-
26	53672-1		Pin, Lower Hinge		Appelez-nous	-
27	54233-1		Washer				$ 7.71
28	66034-1		Bushing, Lower Hinge				$ 19.76
29	62626-1		Spacer, Mtg Lower Hinge		Appelez-nous	-
30	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
