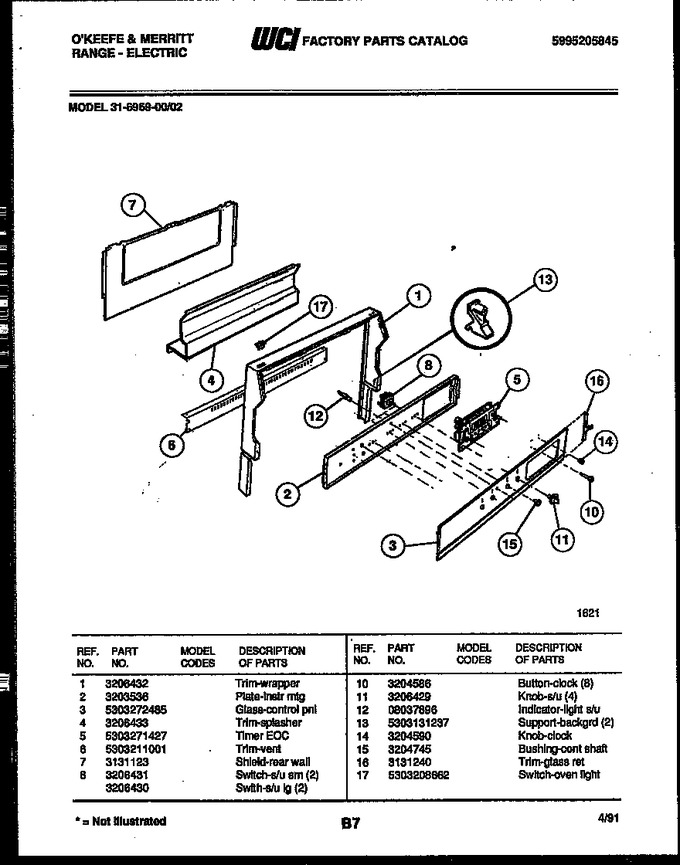

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206432 | Trim-wrapper |
|
- | |||||
| 2 | 3203536 | Plate-instr Mtg |
|
- | |||||
| 3 | 5303272485 | Glass-control Pnl |
|
- | |||||
| 4 | 3206433 | Trim-splasher |
|
- | |||||
| 5 | 5303271427 | Timer Eoc |
|
- | |||||
| 6 | 5303211001 | Trim-vent |
|
- | |||||
| 7 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 8 | 3206431 | Switch S/u Sm. (2) |
|
- | |||||
| 10 | 3204586 | Button - Clock (8) |
|
- | |||||
| 11 | 3206429 | Knob-s/u (4) |
|
- | |||||
| 12 | 08037896 | Indicator-light S/u |
|
- | |||||
| 13 | 5303131237 | Support-backgrd (2) |
|
- | |||||
| 14 | 3204590 | Knob-clock |
|
- | |||||
| 15 | 3204745 | Bushing-cont Shaft |
|
- | |||||
| 16 | 3131240 | Trim-glass Ret |
|
- | |||||
| 17 | 5303208662 | Switch-oven Light |
|
- | |||||
| 8A | 3206430 | Swith S/u Lg (2) |
|
- |
