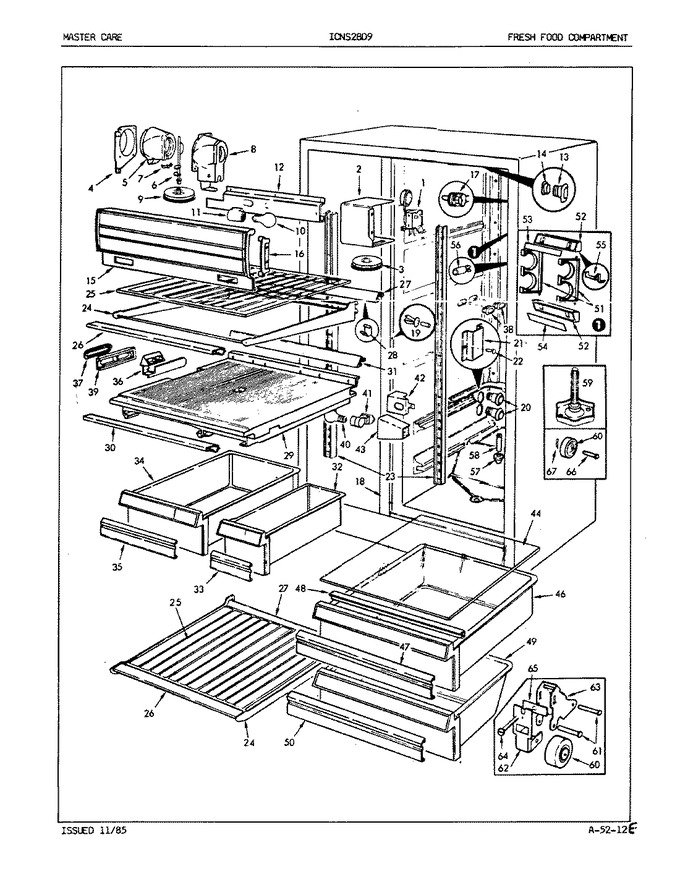

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65268-1		Control, Temperature		Appelez-nous	-
2	53682-10		Housing, Temperature Control		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
3	29893-5		Knob		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	52587-2		Damper		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	58760-2		Housing, Freezer Control		Appelez-nous	-
9	29893-6		Knob		Appelez-nous	-
10	WP67002552		Bulb, Light (40w-230v)   (Replaces: 24082-1)			Immediately	$ 10.58
11	29814-2		Receptacle, Light		Appelez-nous	-
12	59740-3		Housing		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	59333-13		Shield		Appelez-nous	-
16	53686-2		Support		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	56432-2		Switch		Appelez-nous	-
17	65512-1		Spacer		Appelez-nous	-
18	59026-1-AM		Mullion		Appelez-nous	-
19	59920-6		Stud (alm)		Appelez-nous	-
19	53060-4		Clip		Appelez-nous	-
20	53726-1		Air Tunnel		Appelez-nous	-
21	62128-1		Air Deflector		Appelez-nous	-
22	28013-2		Rivet, Air Tunnel		Appelez-nous	-
23	400037-1		Screw		Appelez-nous	-
23	58381-1		Support		Appelez-nous	-
24	65278-3		Shelf Frame		Appelez-nous	-
25	62438-28		Shelf, Glass		Appelez-nous	-
26	65005-15		Trim		Appelez-nous	-
27	65276-17		Trim		Appelez-nous	-
28	65358-1		Clip		Appelez-nous	-
29	63837-2		Cover, Meat Keeper		Appelez-nous	-
30	62733-34		Trim		Appelez-nous	-
31	52014-88		Trim		Appelez-nous	-
32	59331-5		Egg Pan		Appelez-nous	-
33	65297-20		Handle		Appelez-nous	-
34	59329-19		Pan, Meat		Appelez-nous	-
35	65297-16		Handle		Appelez-nous	-
36	63830-1		Control, Slide		Appelez-nous	-
37	63874-2		Gasket		Appelez-nous	-
38	57410-1		Tunnel		Appelez-nous	-
39	63873-1		Gasket		Appelez-nous	-
40	WP67002552		Bulb, Light (40w-230v)   (Replaces: 24082-1)			Immediately	$ 10.58
41	29814-2		Receptacle, Light		Appelez-nous	-
42	53564-1		Housing		Appelez-nous	-
43	52197-1		Guard		Appelez-nous	-
44	65559-3		Shelf, Crisper		Appelez-nous	-
46	59395-17		Pan, Crisper		Appelez-nous	-
47	65297-17		Handle		Appelez-nous	-
48	65593-3		Trim		Appelez-nous	-
49	59592-25		Pan, Fruit		Appelez-nous	-
50	65297-18		Handle		Appelez-nous	-
51	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
51	56519-4		Rack, Wine		Appelez-nous	-
52	65689-1		Support, Wine Rack		Appelez-nous	-
53	65753-1		Insert		Appelez-nous	-
54	65753-2		Insert		Appelez-nous	-
55	58057-1		Spring, Wine Rack		Appelez-nous	-
56	19530-2		Nylon Nut		Appelez-nous	-
57	55512-1		Grommet		Appelez-nous	-
58	55513-1		Tube		Appelez-nous	-
59	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
60	29834-2		Wheel		Appelez-nous	-
61	64965-1		Pin, Wheel		Appelez-nous	-
62	62795-1		Faceplate Bracket		Appelez-nous	-
63	62794-1		Bracket, Wheel		Appelez-nous	-
64	56487-1		Screw, Wheel Adjustment		Appelez-nous	-
65	59101-1		Tapping Plate, Wheel		Appelez-nous	-
65	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
66	62580-1		Pivot Pin, Wheel (rear)		Appelez-nous	-
67	62581-1		Clip, Retaining Wheel (rear)		Appelez-nous	-
67	57418-1		Clip,food Liner Mount.(slides)		Appelez-nous	-
67	56438-1		Clip, Food Liner Mount.top&bot		Appelez-nous	-
67	58532-1		Wire Channel		Appelez-nous	-
