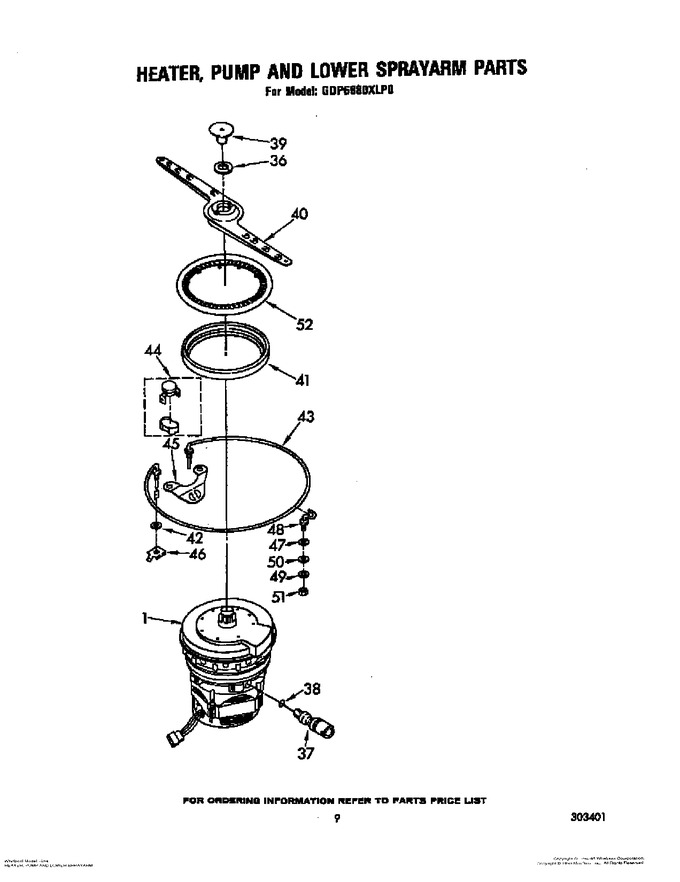

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303504		Pump & Motor Assembly (includes Illus. 41)		Appelez-nous	-
36	719576		Bearing, Nozzle				$ 7.48
37	675238		Adapter, Valve Check (includes Illus. 38)   (Replaces: 719930)				$ 78.04
38	95080		``o`` Ring		Appelez-nous	-
39	302737		Cap, Nozzle		Appelez-nous	-
40	302767		Spray Arm, Lower		Appelez-nous	-
41	717000		Gasket, Pump				$ 78.98
42	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.47
43	717141		Heater (alternate)		Appelez-nous	-
43	302113		Heater (alternate)		Appelez-nous	-
43	302562		Heater (alternate)		Appelez-nous	-
43	719687		Heater (alternate)		Appelez-nous	-
44	302104		Thermostat		Appelez-nous	-
45	715073		Bracket		Appelez-nous	-
46	718537		Nut, 7/16 X 20 (2)		Appelez-nous	-
47	717289		Washer, Retainer (2)		Appelez-nous	-
48	717096		Support, Heater (2)		Appelez-nous	-
49	711284		Washer (2)		Appelez-nous	-
50	14351		Washer (2)		Appelez-nous	-
51	9420162		Nut, 10-32 (2)		Appelez-nous	-
52	303469		Grate		Appelez-nous	-
