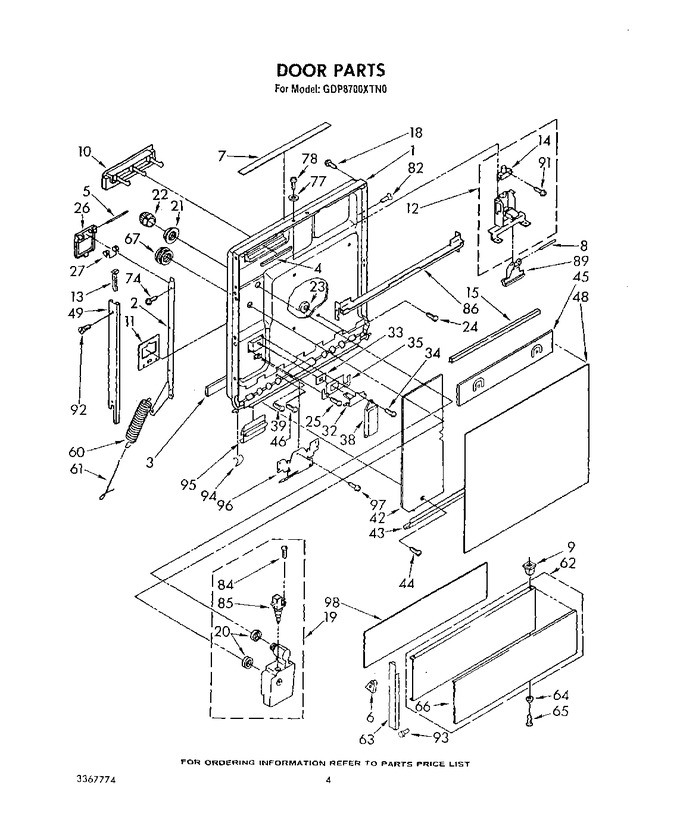

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367388		Door, Inner		Appelez-nous	-
2	3367201		Support, Door (r.h.)		Appelez-nous	-
2	3367202		Support, Door (l.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	719860		Baffle		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	3367736		Retainer (2)		Appelez-nous	-
7	LIT303498		Label, User Guide		Appelez-nous	-
8	300234		Pin, Pivot (2)		Appelez-nous	-
9	356592		Grommet		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
11	303978		Barrier		Appelez-nous	-
12	3367058		Latch Assembly		Appelez-nous	-
13	3367172		Clip, Trim Guard (2)		Appelez-nous	-
14	16600		Alternate   (Replaces: 300232)				$ 6.18
14	660951		Switch, Interlock		Appelez-nous	-
14	303075		Alternate		Appelez-nous	-
14	16600		Alternate   (Replaces: 303885)				$ 6.18
15	3367669		Protector, Edge				$ 36.16
18	304233		Screw, 8 X 1-7/8 (2)		Appelez-nous	-
19	304442		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer		Appelez-nous	-
21	718575		Nut		Appelez-nous	-
22	718577		Indicator, Level		Appelez-nous	-
23	300239		Button, Retainer (3)		Appelez-nous	-
24	300250		Screw, 8-18 X 3/8 (3)		Appelez-nous	-
25	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (2)   (Replaces: 304231)			Immediately	$ 6.98
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	WP304231		Screw, 8-18 X .62   (Replaces: 304231)			Immediately	$ 6.98
35	300104		Retainer		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (1)   (Replaces: 304231)			Immediately	$ 6.98
42	303906		Barrier, Door		Appelez-nous	-
43	304047		Edging, Panel		Appelez-nous	-
44	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
45	303908		Barrier, Console		Appelez-nous	-
46	WP90767		Screw, 8 X 3/8 Hex Washer Head Tapping Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
48	N/A		Panel, Front		Appelez-nous	-
49	3367488		Trim, Door (l.h.)		Appelez-nous	-
49	3367487		Trim, Door (r.h.)		Appelez-nous	-
60	3367658		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
62	N/A		Panel, Access		Appelez-nous	-
63	3367531		Cap, End L.h.		Appelez-nous	-
63	3367527		Cap, End R.h.		Appelez-nous	-
64	719581		Foot (2)		Appelez-nous	-
65	719266		Screw, 8-18 X 5/8		Appelez-nous	-
66	302595		Overlay, Access Panel (brushed Aluminum (optional))		Appelez-nous	-
66	303445		Overlay, Access Panel (black)		Appelez-nous	-
67	718576		Cap, Drip		Appelez-nous	-
74	WP488627		Screw, 8-18 X 1/2 (4)   (Replaces: 300128)				$ 6.81
77	300237		Washer (2)		Appelez-nous	-
78	WP90767		Screw, 8 X 3/8 Hex Washer Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
82	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.07
84	304444		Screw, 4-20 X 3/8 (2)		Appelez-nous	-
85	304443		Actuator		Appelez-nous	-
86	304391		Rail, Support		Appelez-nous	-
89	304408		Lever, Release		Appelez-nous	-
91	301582		Screw, 6-32 X 1		Appelez-nous	-
92	3367288		Screw, 8 - 18 (4)		Appelez-nous	-
93	715779		Bumper		Appelez-nous	-
94	301857		Clip, Wire		Appelez-nous	-
95	3367720		Retainer, Clip		Appelez-nous	-
96	303362		Shield, Harness		Appelez-nous	-
97	WP90767		Screw, 8a X 3/8 Hex Head Tapping   (Replaces: 90767)			Immediately	$ 7.04
98	301774		Pad		Appelez-nous	-
