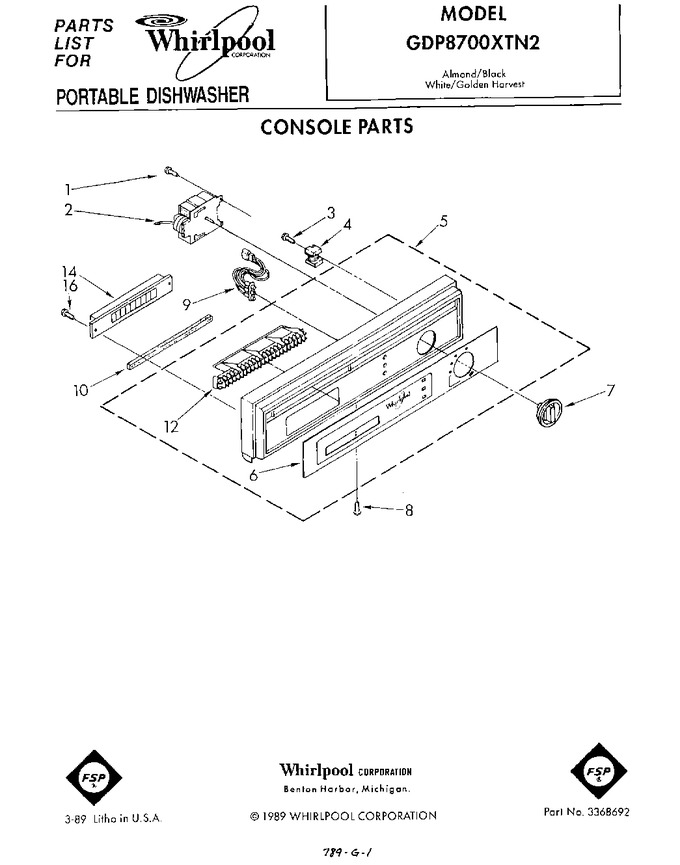

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (3)   (Replaces: 304231)			Immediately	$ 6.98
2	3368390		Timer		Appelez-nous	-
3	304232		Screw, 7-18 X 1-3/8 Slot Hex Wash Hd		Appelez-nous	-
4	3367136		Relay, Start		Appelez-nous	-
5	3367886		Console		Appelez-nous	-
6	3367841		Insert, Decorative		Appelez-nous	-
7	3367282		Knob, Timer		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 Hi-lo (2)   (Replaces: 304234)			Immediately	$ 7.01
9	304422		Light, Indicator (for Electrical Connector Only, See Wiring Harness Parts Page).		Appelez-nous	-
10	3368537		Baffle		Appelez-nous	-
12	304602		Grill, Vent		Appelez-nous	-
14	3367741		Switch, Pushbutton		Appelez-nous	-
16	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (2)   (Replaces: 304231)			Immediately	$ 6.98
