Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP94614 Terminal (female)   (Replaces: 94614) Special Order $ 6.90

2 352088 Terminal, Female Special Order $ 5.83

6 353425 Receptacle, Terminal (3-way) Appelez-nous -
8 94613 Terminal Appelez-nous -
9 719585 Receptacle (5-circuit) Appelez-nous -
10 304503 Harness, Wiring Appelez-nous -
14 301219 Connector Block Appelez-nous -
15 374230 Connector Block (alternate) Appelez-nous -
15 300708 Connector, Block (alternate) Appelez-nous -
16 358736 Insulator .250 Terminal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

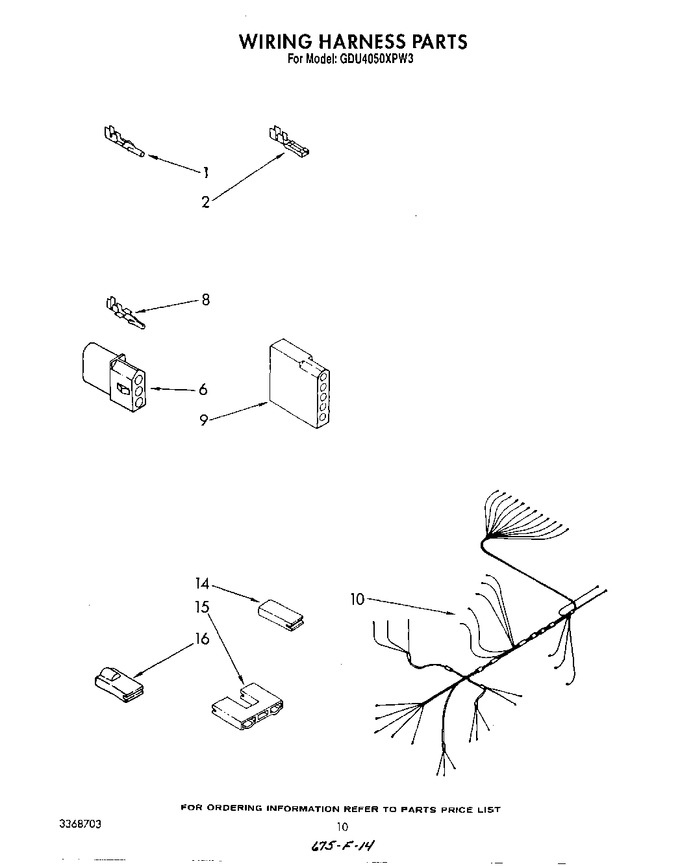

Diagram for GDU4050XPW3
