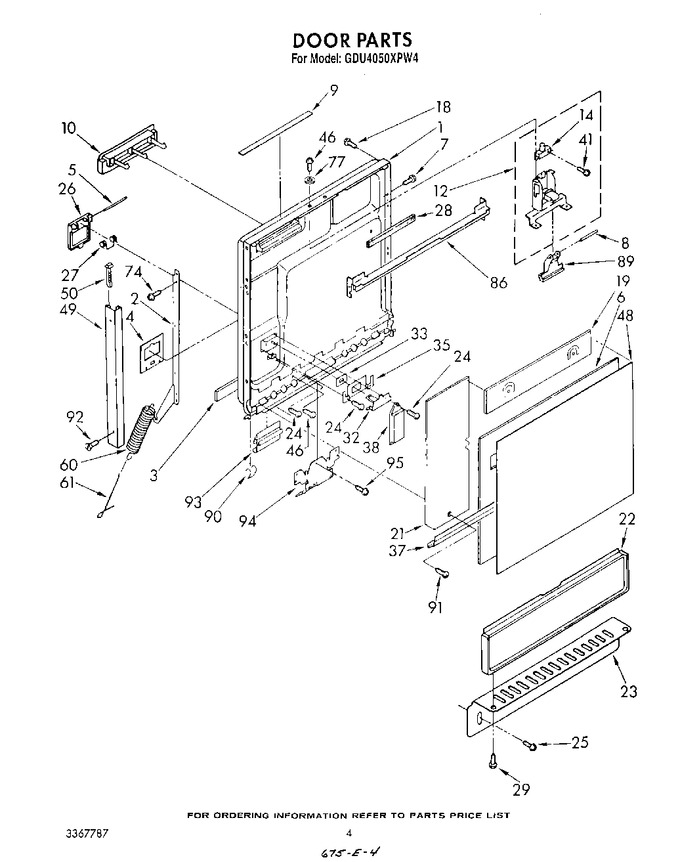

03 - Door


04 - Dishrack


05 - Heater, Pump And Lower Spray Arm


06 - 3367743 Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367387		Door, Inner		Appelez-nous	-
2	3367201		Support, Door (r.h.)		Appelez-nous	-
2	3367202		Support, Door (l.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	303978		Barrier		Appelez-nous	-
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	3368569		Spacer, Corrugated		Appelez-nous	-
7	WP489069		Screw, 8-18 X 1/2 (2)   (Replaces: 304392)			Immediately	$ 7.07
8	300234		Pin, Pivot (2)		Appelez-nous	-
9	LIT302081		Label, User Guide		Appelez-nous	-
10	300246		Screen, Vent		Appelez-nous	-
12	3367058		Latch Assembly		Appelez-nous	-
14	660951		Switch, Interlock		Appelez-nous	-
18	304233		Screw, 8 X 1-7/8 (2)		Appelez-nous	-
19	303908		Barrier, Console		Appelez-nous	-
21	303906		Barrier, Door		Appelez-nous	-
22	3367793		Panel, Access		Appelez-nous	-
23	3367470		Plate, Toe		Appelez-nous	-
24	WP304231		Screw, 8 X 1/2   (Replaces: 304231)			Immediately	$ 6.98
25	WP90767		Screw, 8-18 X 3/8 (2)   (Replaces: 300890)			Immediately	$ 7.04
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	719860		Baffle		Appelez-nous	-
29	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 6.98
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
35	300104		Retainer		Appelez-nous	-
37	304047		Trim, Panel		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
41	301582		Screw, 6-32 X 1 (1)		Appelez-nous	-
46	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
48	N/A		Xpanel, Front		Appelez-nous	-
49	3367206		Trim, Door R.h.		Appelez-nous	-
49	3367207		Trim, Door (l.h.)		Appelez-nous	-
50	3367172		Clip, Trim Guard (2)		Appelez-nous	-
60	3367658		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
74	WP488627		Screw, 8-18 X 1/2 (6)   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
86	304391		Rail, Support		Appelez-nous	-
89	304408		Lever, Release		Appelez-nous	-
90	301857		Clip, Wire		Appelez-nous	-
91	W11693756		Screw, 8-18 X 1/2 (2)   (Replaces: 688983)			Immediately	$ 12.65
92	3367288		Screw, 8 X 1/2 (4)		Appelez-nous	-
93	303121		Retainer, Clip		Appelez-nous	-
94	303362		Shield, Harness		Appelez-nous	-
95	303090		Screw, 8-18 X 5/8		Appelez-nous	-
