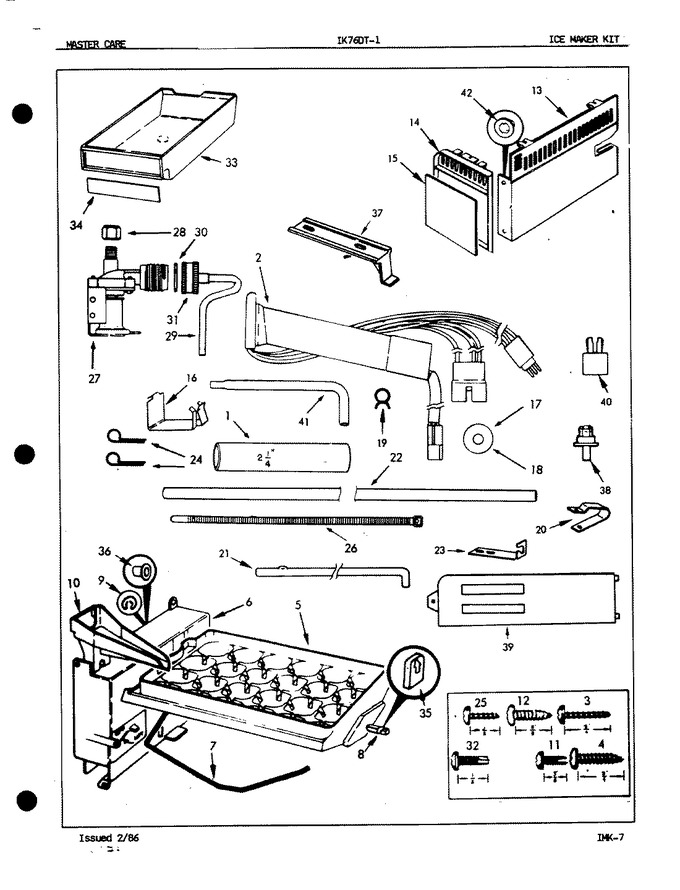

01 - Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58461-3 | Tube, Fill |
|
- | |||||
| 1 | 58461-1 | Tube, Fill |
|
- | |||||
| 2 | 58397-2 | Wire Harness |
|
- | |||||
| 3 | W11772394 | Screw (Replaces: 400021-1) |
|
Immediately | $ 10.94 | ||||
| 4 | 61002031 | Screw (Replaces: 400083-103) |
|
$ 41.36 | |||||
| 5 | WP59688-1A | Tray, Ice (Replaces: 59688-1) |
|
$ 18.71 | |||||
| 6 | RA43714-9 | Icemaker Mech |
|
- | |||||
| 7 | 52307-1 | Sensor Arm |
|
- | |||||
| 8 | 65319-1 | Shaft, Drive |
|
- | |||||
| 9 | 58706-1 | Ring, Retainer |
|
- | |||||
| 10 | 53748-1 | Spout, Fill |
|
- | |||||
| 11 | 405009-103 | Screw |
|
- | |||||
| 12 | WP3196163 | Screw (Replaces: 402068-103) |
|
$ 6.26 | |||||
| 13 | 59315-1 | Im Side |
|
- | |||||
| 14 | 65069-6 | Front |
|
- | |||||
| 15 | 59321-1 | Insert |
|
- | |||||
| 16 | 57112-1 | Clip |
|
- | |||||
| 17 | 420051-900 | Washer |
|
- | |||||
| 18 | 58918-1 | Insulation |
|
- | |||||
| 18 | 420052-900 | Washer |
|
- | |||||
| 19 | 9602-10 | Hose Clamp |
|
- | |||||
| 19 | 24667-1 | Saddle Valv Kit |
|
- | |||||
| 20 | 59135-1 | Clamp, Tank Tubing |
|
- | |||||
| 21 | 53761-11 | Feeder Tube |
|
- | |||||
| 22 | WPB5705307 | Tube (Replaces: 55602-16) |
|
$ 11.19 | |||||
| 23 | 52341-4 | Bracket |
|
- | |||||
| 24 | W10833902 | Clamp, Tubing (Replaces: 53516-8) |
|
$ 9.89 | |||||
| 25 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 25 | 58889-8 | Water Supp Kit |
|
- | |||||
| 26 | WPW10339879 | Clamp (Replaces: 57576-1) |
|
$ 7.11 | |||||
| 27 | 4318047 | Valve (Replaces: 55996-3) |
|
Immediately | $ 66.68 | ||||
| 28 | WP627018 | Nut, Compression (1/4``) (Replaces: 55419-1) |
|
$ 9.87 | |||||
| 29 | 53855-3 | Inlet |
|
- | |||||
| 30 | 24685-5 | Washer, Inlet Tubing Nut |
|
- | |||||
| 31 | 24685-1 | Nut, Inlet Tubing |
|
- | |||||
| 32 | WP250830 | Screw (Replaces: 401017-1) |
|
$ 7.16 | |||||
| 33 | 53851-4 | Cube Pan |
|
- | |||||
| 34 | 100543-1 | Manual, Use & Care |
|
- | |||||
| 34 | 59322-1 | Trim |
|
- | |||||
| 35 | 65318-1 | Clip, Drive Shaft |
|
$ 23.83 | |||||
| 36 | 65317-1 | Spacer |
|
- | |||||
| 37 | 58757-1 | Bracket |
|
- | |||||
| 37 | W11233072 | Screw (Replaces: 400016-1) |
|
Immediately | $ 12.62 | ||||
| 38 | WPW10296793A | Union, Compression (Replaces: 54267-1) |
|
$ 10.93 | |||||
| 38 | 53914-2 | Stud |
|
- | |||||
| 39 | 55894-1 | Extension |
|
- | |||||
| 40 | 54920-1 | Spacer |
|
- | |||||
| 41 | 56125-4 | Tube |
|
- | |||||
| 42 | 431033-501 | Nut, Push-on |
|
- |
