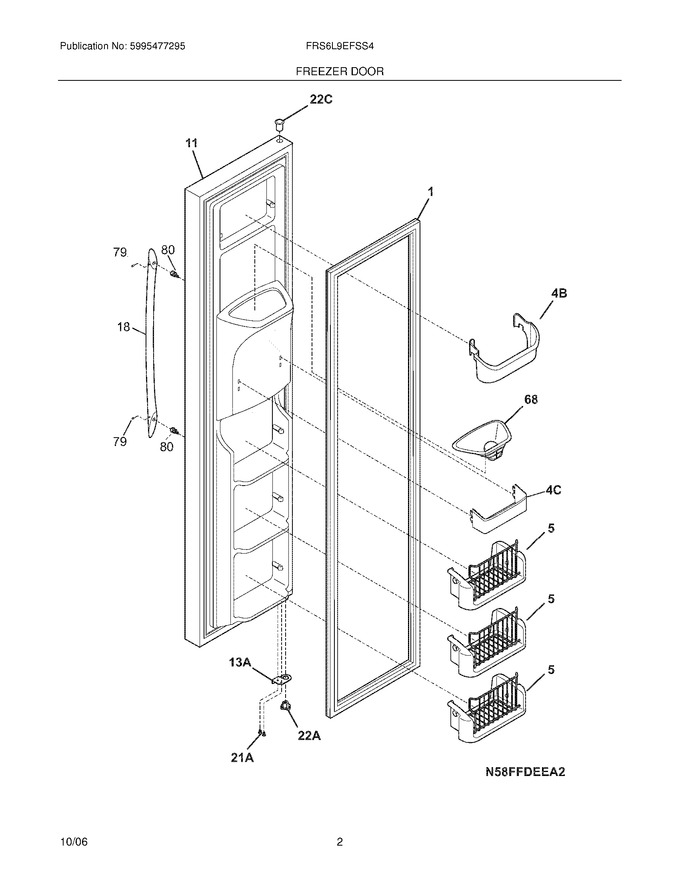

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241545005		Bin-tilt Out,tilt-out				$ 130.64
11	241668500		Door-frzr,stainless ,complete Assy				$ 740.04
18	240536818		Handle-door,stainless Steel ,with Insert,& Set Screw				$ 202.00
68	241525101		Chute-ice				$ 82.25
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240581906		Door Stop,black ,frzr				$ 73.00
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4B	240334202		Bin-door,frzr-upper			Immediately	$ 67.21
4C	240351702		Bin-door,frzr-dispenser				$ 97.39
F1	241786014		Gasket-frzr Door,black ,magnetic   (Replaces: 241674806)				$ 95.17
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240552102		Harness-wiring,door				$ 77.60
NI	5303918256		Dispenser Heater Kit				$ 474.16
