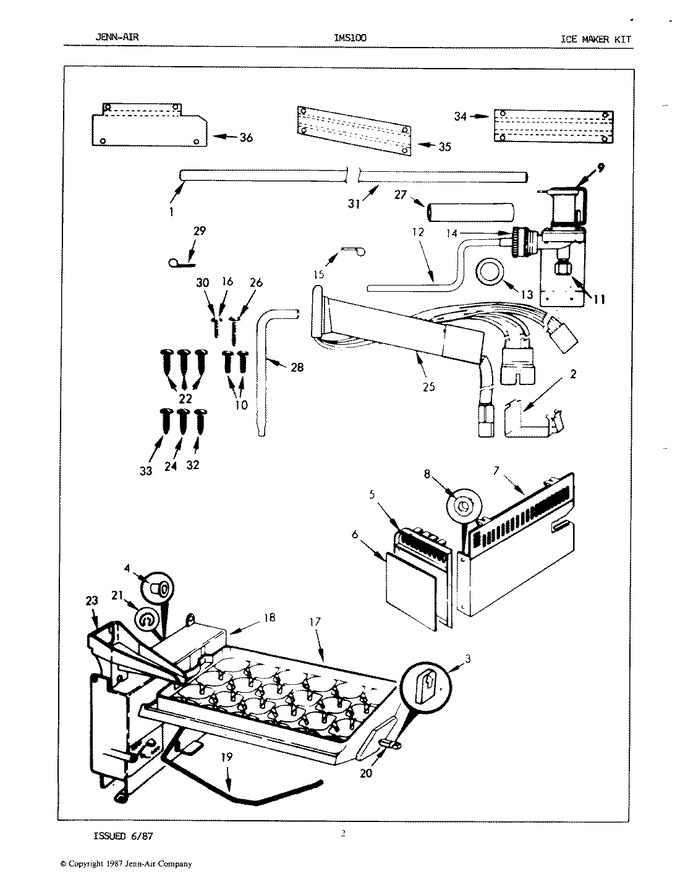

Diagram for 01 - Ice Maker Kit
01 - Ice Maker Kit


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 65001-24 Tubing Appelez-nous -
2 57112-1 Clip Appelez-nous -
3 65318-1 Clip, Drive Shaft Special Order $ 23.83

4 420052-900 Washer Appelez-nous -
4 65317-1 Spacer Appelez-nous -
4 420051-900 Washer Appelez-nous -
5 65069-6 Front Appelez-nous -
6 65283-8 Trim Appelez-nous -
7 59315-2 Im Side Appelez-nous -
8 431033-501 Nut, Push-on Appelez-nous -
9 4318047 Valve   (Replaces: 55996-3) In-Stock Immediately $ 66.68

10 WP250830 Screw   (Replaces: 401017-1) Special Order $ 7.16

11 WP627018 Nut, Compression (1/4``)   (Replaces: 55419-1) Special Order $ 9.87

12 53855-3 Inlet Appelez-nous -
13 24685-5 Washer, Inlet Tubing Nut Appelez-nous -
14 24685-1 Nut, Inlet Tubing Appelez-nous -
15 W10833902 Clamp, Tubing   (Replaces: 53516-8) Special Order $ 9.89

16 W11233072 Screw   (Replaces: 400016-1) In-Stock Immediately $ 12.62

17 WP59688-1A Tray, Ice   (Replaces: 59688-1) Special Order $ 18.71

18 RA43714-8 Mechanism, Ice Maker Appelez-nous -
19 52307-2 Arm, Sensor Appelez-nous -
20 65319-1 Shaft, Drive Appelez-nous -
21 58706-1 Ring, Retainer Appelez-nous -
22 61002031 Screw   (Replaces: 400083-103) Special Order $ 41.36

23 53748-1 Spout, Fill Appelez-nous -
24 405009-103 Screw Appelez-nous -
25 58397-3 Wire Harness Appelez-nous -
26 W11772394 Screw   (Replaces: 400021-1) In-Stock Immediately $ 10.94

27 58461-3 Tube, Fill Appelez-nous -
27 58461-2 Tube, Fill Appelez-nous -
28 66759-1 Tube Appelez-nous -
29 WP488366 Clamp, Feeder Tube   (Replaces: 23197-8) Special Order $ 10.06

30 W11233072 Screw   (Replaces: 400016-1) In-Stock Immediately $ 12.62

31 WPB5705307 Tubing   (Replaces: 55602-3) Special Order $ 11.19

32 405012-103 Screw Appelez-nous -
33 WP3196163 Screw   (Replaces: 402068-103) Special Order $ 6.26

34 66380-1 Cover Appelez-nous -
35 66379-1 Cover Appelez-nous -
36 104170-1 Inst Instr And U & C Appelez-nous -
36 66378-1 Cover Appelez-nous -
36 100148-1 Instructions Appelez-nous -
36 WP488729 Screw   (Replaces: 9986-45) In-Stock Immediately $ 7.01


    View Diagram in Separate Window     Print Icon   Print Part List
