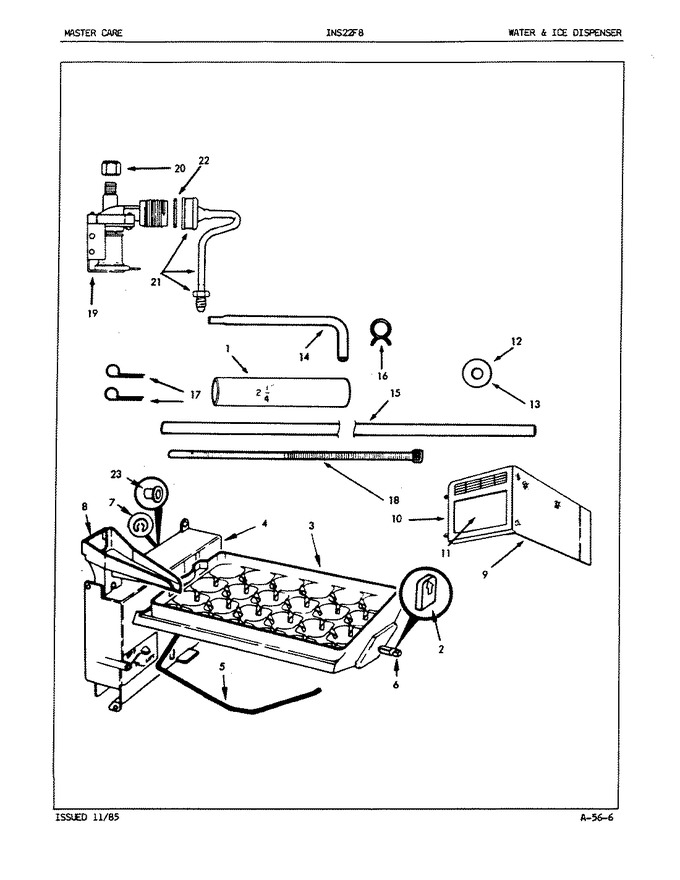

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	58461-4		Tube, Fill		Appelez-nous	-
1	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
2	65318-1		Clip, Drive Shaft				$ 23.83
2	W11772394		Screw   (Replaces: 400021-1)			Immediately	$ 10.94
3	WP59688-1A		Tray, Ice   (Replaces: 59688-1)				$ 18.71
4	RA43714-8		Mechanism, Ice Maker		Appelez-nous	-
5	52307-2		Arm, Sensor		Appelez-nous	-
6	65319-1		Shaft, Drive		Appelez-nous	-
7	58706-1		Ring, Retainer		Appelez-nous	-
8	400024-103		Screw		Appelez-nous	-
8	405009-103		Screw		Appelez-nous	-
8	53748-1		Spout, Fill		Appelez-nous	-
9	59315-1		Im Side		Appelez-nous	-
10	65069-1		Front		Appelez-nous	-
11	W11233072		Screw   (Replaces: 402019-103)			Immediately	$ 12.62
11	59321-5		Insert		Appelez-nous	-
11	400018-103		Screw		Appelez-nous	-
12	420051-900		Washer		Appelez-nous	-
13	420052-900		Washer		Appelez-nous	-
14	56125-3		Tube		Appelez-nous	-
15	WPB5705307		Tube   (Replaces: 55602-15)				$ 11.19
16	60333-1		Clamp, Spring		Appelez-nous	-
17	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
17	W11233072		Screw   (Replaces: 400016-1)			Immediately	$ 12.62
18	WPW10339879		Wire Tie   (Replaces: 57576-3)				$ 7.11
19	4318047		Valve   (Replaces: 55996-3)			Immediately	$ 66.68
20	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
21	53760-2		Inlet Tubing Assy.		Appelez-nous	-
22	63459-1		Inlet Assembly		Appelez-nous	-
22	65001-43		Tubing		Appelez-nous	-
22	24685-5		Washer, Inlet Tubing Nut		Appelez-nous	-
22	WP488366		Clamp, Feeder Tube   (Replaces: 23197-8)				$ 10.06
22	401018-1		Screw		Appelez-nous	-
22	59090-1		Bushing		Appelez-nous	-
23	65317-1		Spacer		Appelez-nous	-
