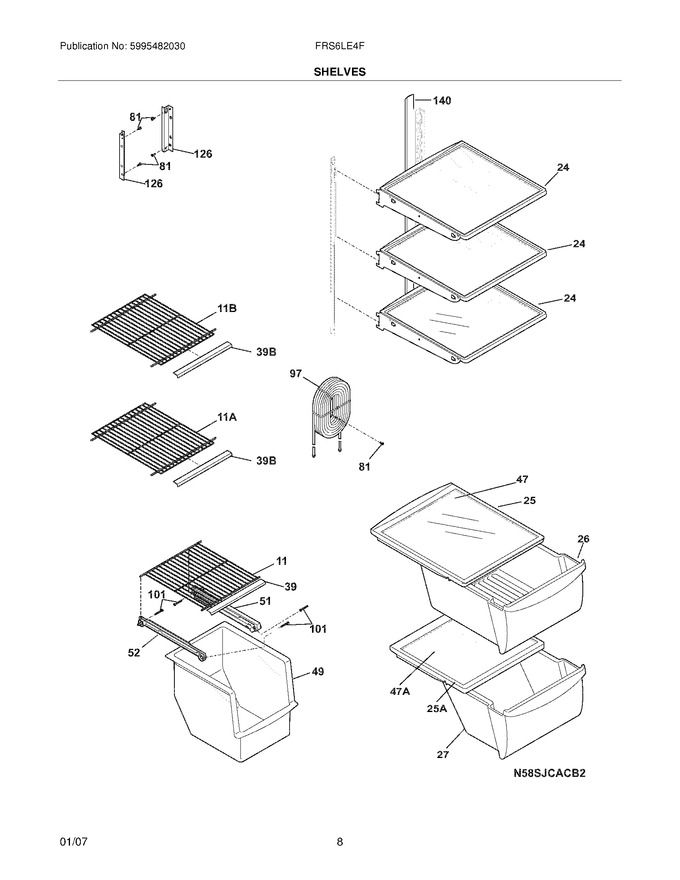

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657602		Shelf,flip Up ,wire				$ 86.45
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355208)				$ 170.63
25	240350702		Cover-crisper Pan,upper			Immediately	$ 41.92
26	240351061		Pan-crisper,upper   (Replaces: 240351007)			Immediately	$ 110.01
27	240351207		Pan-crisper,lower				$ 173.74
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,rear Filter				$ 280.67
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
126	241674402		Channel,auger Mtg ,rh				$ 43.24
126	241674401		Channel,auger Mtg ,lh				$ 47.48
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	241657512		Shelf,fixed ,freezer   (Replaces: 241657502)				$ 16.87
11B	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
39B	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48

    View Diagram in Separate Window       Print Part List
