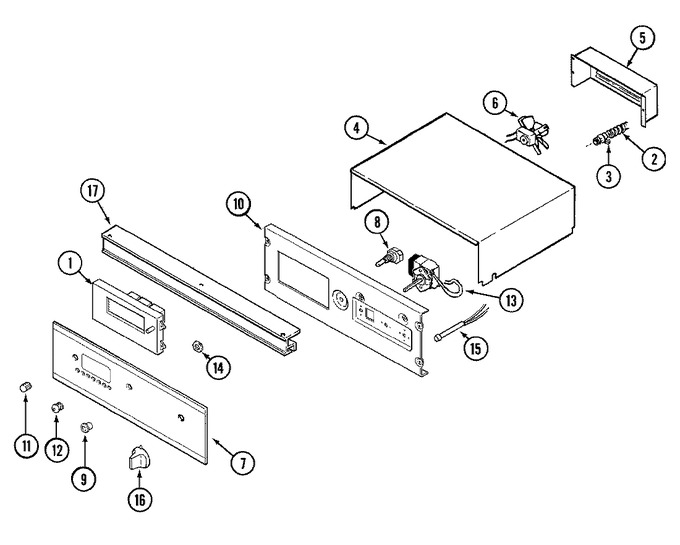

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P281-60		Clock	11	Appelez-nous	-
1	8010P100-60		Spacer	11	Appelez-nous	-
1	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	11			$ 6.98
2	3414F037-44		Tubing, 1/2 X 48`` Flexible	11	Appelez-nous	-
3	7417P017-60		Connector, Cable	11			$ 9.81
4	WP7101P126-60		Screw   (Replaces: 7101P356-60)	11		Immediately	$ 6.85
4	4005F150-51		Cover, Wire	11	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 7101P356-60)	11		Immediately	$ 6.85
5	4005F262-51		Cover, Fan	11	Appelez-nous	-
6	7427P010-60		Fan Assy.	11	Appelez-nous	-
6	7101P239-60		Screw	11	Appelez-nous	-
6	8008P004-60		Grommet	11	Appelez-nous	-
7	74003319		Panel, Control (wht)	22	Appelez-nous	-
7	74002900		Glass, Control Panel (wht)	11	Appelez-nous	-
8	7101P279-60		Screw W/washer	11	Appelez-nous	-
8	7403P204-60		Switch, Push (wht)	11	Appelez-nous	-
9	7214P023-60		Sleeve, Switch (wht)	11	Appelez-nous	-
10	7208P008-60		Seal	11	Appelez-nous	-
10	3605F195-80		Plate, Backing	11	Appelez-nous	-
10	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	11		Immediately	$ 12.62
11	WP7711P492-60		Knob, Clock (wht)   (Replaces: 7711P493-60)	11			$ 12.13
12	7711P491-60		Button, Clock (gray)	11	Appelez-nous	-
12	74003038		Button, Clock (wht)	19	Appelez-nous	-
13	7404P042-60		Thermostat, Lower	11	Appelez-nous	-
14	7103P021-60		Nut, Switch	11	Appelez-nous	-
15	7407P105-60		Light, Signal	11	Appelez-nous	-
16	7737P011-60		Knob, Switch (wht)	11	Appelez-nous	-
17	74001699		Retainer, Ctl Pnl Glass (chr)	11	Appelez-nous	-
18	5125A390-60		Harness, Loose Wire	11	Appelez-nous	-
18	5170D220-60		Harness, Main	11	Appelez-nous	-
18	5170P185-60		Harness, Sensor/lock	11	Appelez-nous	-
19	74002470		Manual, Use & Care	11	Appelez-nous	-
20	16000326		Guide, Quick Ref - Jenn-air	11	Appelez-nous	-
