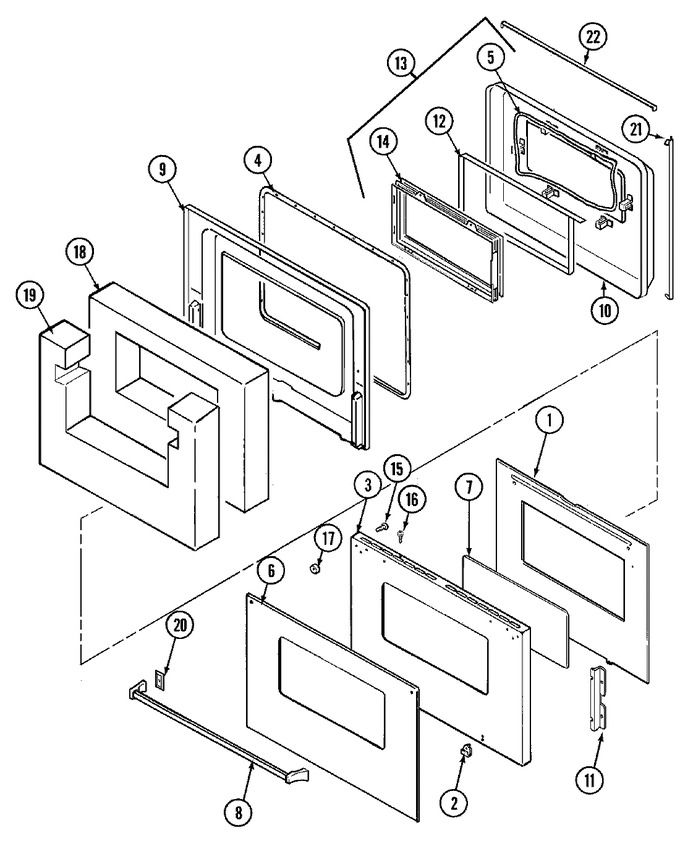

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F131-51 | Baffle, Door | 11 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 11 |
|
Immediately | $ 6.85 | |||
| 2 | 7112P093-60 | Clip, Glass (blk) | 11 |
|
$ 12.67 | ||||
| 3 | 2401F103-70 | Panel, Door (blk) | 11 |
|
- | ||||
| 4 | 7201P053-60 | Gasket, Door | 11 |
|
- | ||||
| 5 | 7201P020-60 | Gasket | 11 |
|
- | ||||
| 6 | 8270P098-60 | Tape | 11 |
|
$ 5.02 | ||||
| 6 | 7902P336-60 | Glass, Outer (blk) | 11 |
|
$ 97.39 | ||||
| 7 | 7902P097-60 | Glass, Inner | 11 |
|
$ 63.87 | ||||
| 8 | 7701P024-60 | Handle, Door (blk) | 11 |
|
$ 67.19 | ||||
| 9 | 2402W130-19 | Lining, Door | 11 |
|
- | ||||
| 10 | 2410W042-19 | Pad, Door | 11 |
|
- | ||||
| 11 | 3804F021-45 | Retainer, Gasket | 11 |
|
- | ||||
| 12 | 3804F051-80 | Retainer, Glass | 11 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 11 |
|
Immediately | $ 6.85 | |||
| 13 | 2410A042-19 | Pad, Oven Door Assy. | 11 |
|
- | ||||
| 14 | 5700A082-60 | Window Assy. | 11 |
|
$ 164.77 | ||||
| 15 | WP3400074 | Screw (Replaces: 7101P068-60) | 11 |
|
$ 6.47 | ||||
| 16 | 7101P276-60 | Screw (blk) | 11 |
|
- | ||||
| 17 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 11 |
|
$ 13.08 | ||||
| 18 | 7002P023-60 | Insulation, Door----na | 11 |
|
- | ||||
| 19 | 7002P021-60 | Insulation, Door | 11 |
|
- | ||||
| 20 | 8010P015-60 | Spacer, Handle (blk) | 11 |
|
- | ||||
| 21 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 11 |
|
$ 105.81 | ||||
| 22 | 7208P002-60 | Seal | 11 |
|
- |
