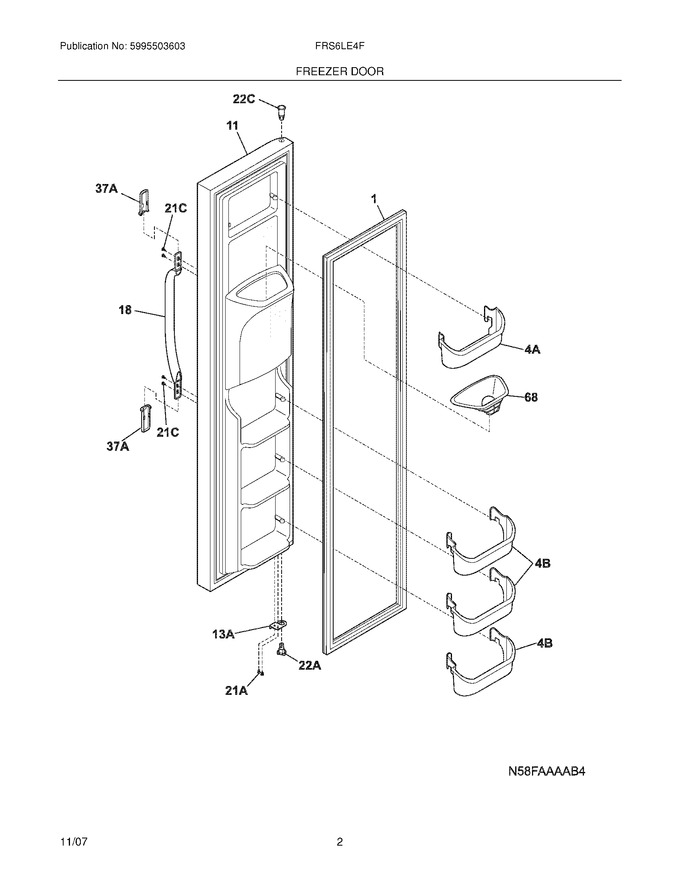

03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Gasket-frzr Door,white ,magnetic (Replaces: 241786002) |
|
$ 95.17 | |||||
| 11 | 241668111 | Door-frzr,white ,complete Assy |
|
$ 397.14 | |||||
| 18 | 297311201 | Handle-door, White (Replaces: 218762701) |
|
Immediately | $ 80.60 | ||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 13A | 240581902 | Door Stop,white ,frzr |
|
$ 47.03 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 21C | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 22A | 242000501 | Bearing-hinge(frz),closer (Replaces: 240328202) |
|
$ 7.14 | |||||
| 22C | 240328402 | Bearing-hinge,natural ,upper |
|
$ 19.85 | |||||
| 37A | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 | |||||
| 37A | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| 4A | 240334201 | Bin-door,frzr-upper |
|
$ 67.21 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| NI | 5304521763 | Harness-wiring,door (Replaces: 240552101) |
|
$ 85.69 | |||||
| NI | 241806601 | Connector-water,straight |
|
Immediately | $ 70.56 | ||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
