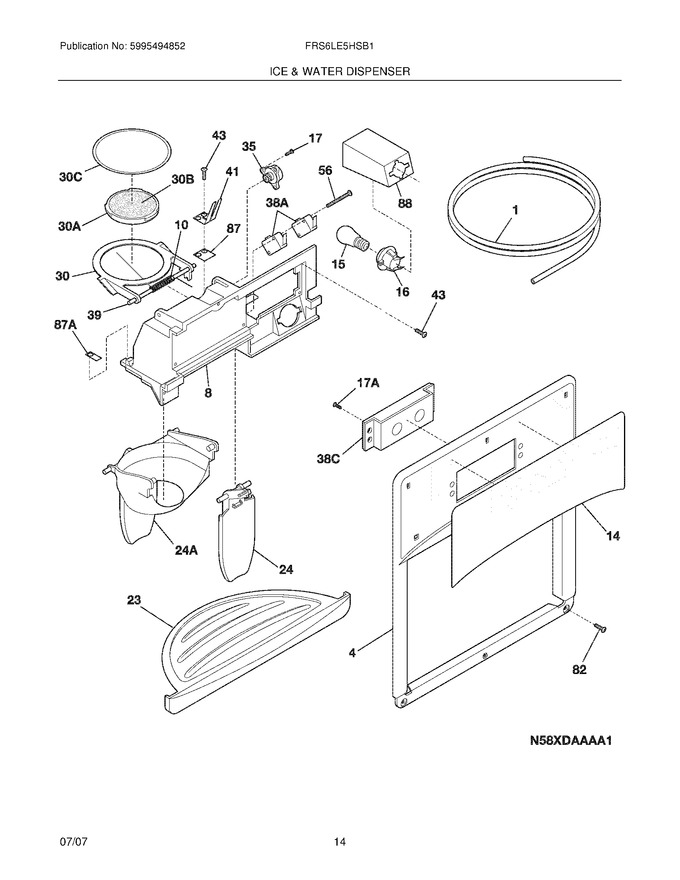

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	241679003		Cover-module,black				$ 75.02
8	241680507		Module-dispenser				$ 70.75
10	241688901		Spring-torsion			Immediately	$ 21.27
14	240570237		Label-module Cover,black   (Replaces: 240570206)			Immediately	$ 30.03
15	241689401		Light Bulb		Appelez-nous	-
16	240548901		Socket-light				$ 63.70
17	241679801		Screw				$ 14.18
23	241649003		Drip Tray,black				$ 61.66
24	241682003		Actuator-water,black			Immediately	$ 55.63
30	241688401		Door Assy-ice Chute				$ 49.62
35	241689301		Damper-rotary				$ 70.52
39	241688801		Pin-hinge				$ 43.24
41	241689001		Spring-actuator				$ 21.97
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 13.46
82	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363402)			Immediately	$ 15.92
87	241688302		Bearing Plate				$ 19.85
88	241686101		Shield-light				$ 36.02
17A	241679901		Screw,switch Mtg.				$ 14.18
24A	241681903		Actuator-ice,black			Immediately	$ 83.64
30A	241688501		Door Center				$ 52.97
30B	241688601		Insulation-door				$ 63.17
30C	241688701		Door Seal				$ 40.46
38A	241679201		Harness-wiring				$ 82.22
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 241689101)			Immediately	$ 8.60
38C	5304525097		Switch   (Replaces: 241679101)				$ 103.90
38C	241873301		Harness-wiring   (Replaces: 241686001)				$ 11.15
87A	241688301		Bearing Plate				$ 19.85
NI	218515403		Clip-grille				$ 29.06
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	218976420		Tube-water Inlet,inlet Valve ,to Filter				$ 44.65
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
