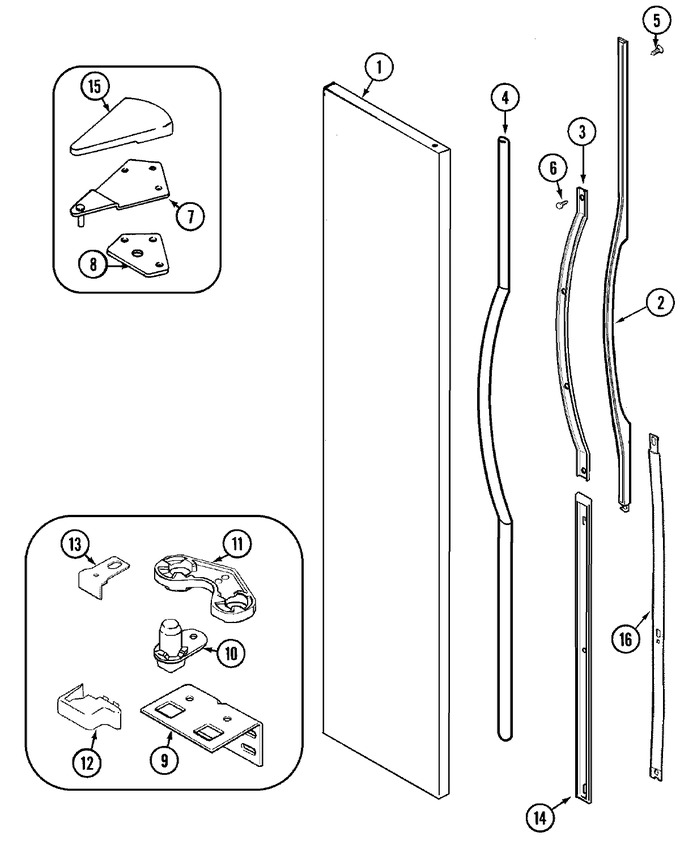

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004784		Panel, Frz. Door (bsq)	10	Appelez-nous	-
2	61004760		Handle, Door (bsq)	10	Appelez-nous	-
3	61004385		Frame, Handle	10	Appelez-nous	-
4	61004762		Insert, Handle (bsq)	10	Appelez-nous	-
5	61003351		Screw, Handle To Frame	10	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
7	61004896		Hinge, Upper	10			$ 36.71
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	61004764		Hinge, Lower (bsq)	10	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
11	61003647		Closer, Door (natural)	10			$ 10.19
12	61004769		Cover, Lower Hinge (bsq)	10	Appelez-nous	-
13	61004120		Stop, Door	10	Appelez-nous	-
13	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
14	61004767		Trim, Handle Ext. (lwr-bsq)	10	Appelez-nous	-
14	61004768		Screw	10	Appelez-nous	-
15	61004786		Cover, Upper Hinge (bsq)	10	Appelez-nous	-
16	61004781		Retainer, Handle	10	Appelez-nous	-
