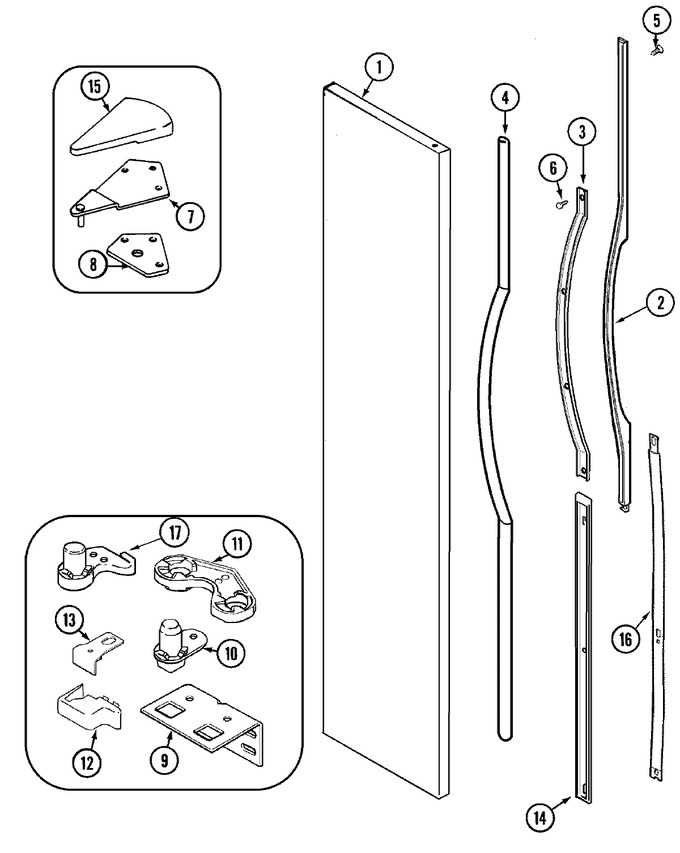

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004218		Panel, Frz. Door (blk)	10	Appelez-nous	-
1	61005819		Panel, Frz. Door (wht)	11	Appelez-nous	-
2	61004958		Handle, F.f. Door (blk)	10	Appelez-nous	-
3	61004385		Frame, Handle	10	Appelez-nous	-
4	61004084		Insert, Handle (blk)	10	Appelez-nous	-
5	61003351		Screw, Handle To Frame	10	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
7	61004896		Hinge, Upper	10			$ 36.71
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
9	61002361		Hinge, Lower (blk)	10			$ 74.20
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
11	61003647		Closer, Door (natural)	10			$ 10.19
12	61003529		Cover, Lower Hinge (blk)	10			$ 14.51
13	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
13	61004120		Stop, Door	10	Appelez-nous	-
14	61004957		Trim, Handle Ext. (lwr-blk)	10	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
15	61002375		Cover, Upper Hinge (blk)	10	Appelez-nous	-
16	61004781		Retainer, Handle	10	Appelez-nous	-
17	61005726		Closer, Door (w/cup)	11			$ 27.14
17	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
