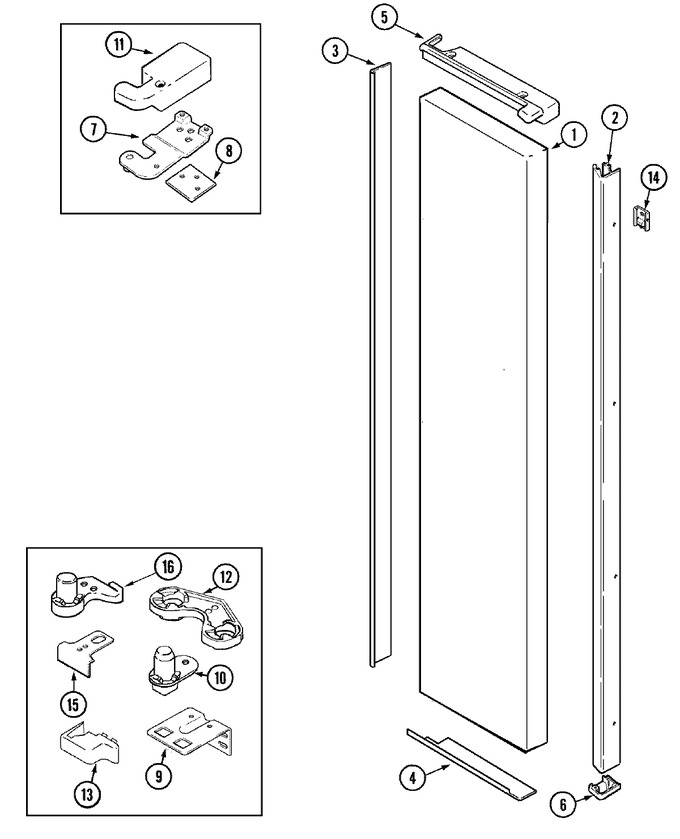

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61006230 | Panel, Frz. Door (blk) | 11 |
|
- | ||||
| 1 | 61004220 | Panel, Frz. Door (blk) | 10 |
|
- | ||||
| 2 | 61004208 | Handle, F.f. Door (slv) | 10 |
|
- | ||||
| 2 | 61004345 | Screw (no.8-18 Type Ab) | 10 |
|
- | ||||
| 3 | 61004346 | Screw (no.8 Philhead) | 10 |
|
- | ||||
| 3 | 61004221 | Trim, Perimeter (side-slv) | 10 |
|
- | ||||
| 4 | 61004222 | Trim, Perimeter (btm-slv) | 10 |
|
- | ||||
| 4 | 61004346 | Screw (no.8 Philhead) | 10 |
|
- | ||||
| 5 | 61004173 | Screw | 10 |
|
- | ||||
| 5 | 61004223 | Cap, Top (slv) | 10 |
|
- | ||||
| 5 | 61004396 | Screw | 10 |
|
- | ||||
| 6 | 61004224 | End Cap, Handle (slv) | 10 |
|
- | ||||
| 6 | WP59002061 | Screw (Replaces: 61004172) | 10 |
|
$ 6.98 | ||||
| 7 | WP3-24838-048 | Screw (Replaces: 61004763) | 10 |
|
$ 7.00 | ||||
| 7 | 61004194 | Hinge, Upper | 10 |
|
- | ||||
| 8 | 61001922 | Shim, Upper Hinge | 10 |
|
$ 0.71 | ||||
| 9 | 3400112 | Screw (Replaces: 61003128) | 10 |
|
$ 62.96 | ||||
| 9 | 61004713 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 10 | 61003174 | Pin, Lower Hinge | 10 |
|
$ 6.22 | ||||
| 11 | 12001982 | Cover, Upper Hinge (blk) (Replaces: 61004722) | 10 |
|
$ 56.05 | ||||
| 12 | W10856122 | Screw (Replaces: 61002180) | 10 |
|
$ 6.98 | ||||
| 12 | 61003647 | Closer, Door (natural) | 10 |
|
$ 10.19 | ||||
| 13 | 61004178 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 14 | W10856122 | Screw (Replaces: 61002180) | 10 |
|
$ 6.98 | ||||
| 14 | 61004179 | Base, Handle | 10 |
|
$ 5.02 | ||||
| 15 | 61004120 | Stop, Door | 10 |
|
- | ||||
| 15 | W10856122 | Screw (Replaces: 61002180) | 10 |
|
$ 6.98 | ||||
| 16 | 61005726 | Closer, Door (w/cup) | 11 |
|
$ 27.14 | ||||
| 16 | W10856122 | Screw (Replaces: 61002180) | 11 |
|
$ 6.98 |
