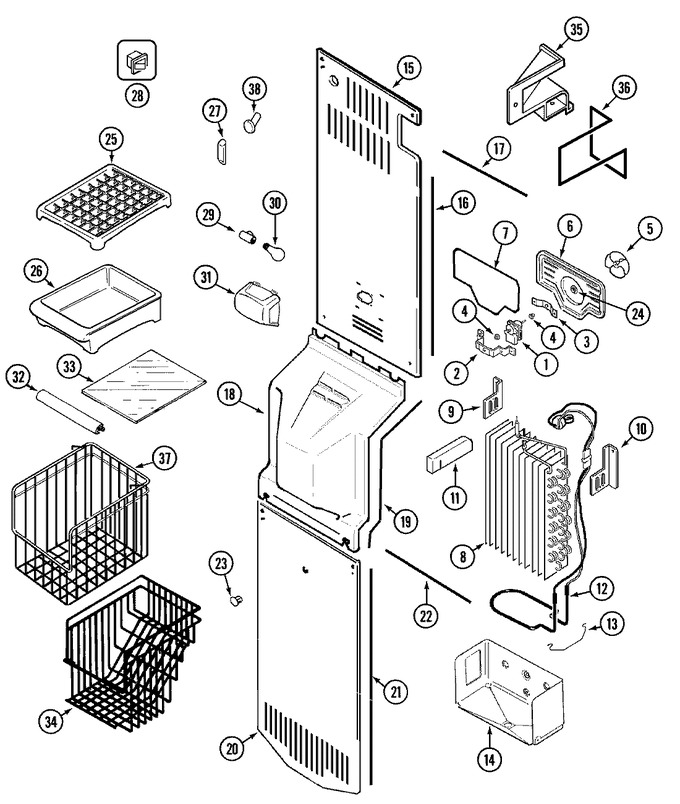

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP61004888 | Motor, Evaporator Fan (Replaces: 61001939) | 10 |
|
Immediately | $ 104.99 | |||
| 2 | 61001930 | Bracket, Evaporator Fan | 10 |
|
- | ||||
| 2 | WP489399 | Screw (Replaces: 61001885) | 10 |
|
$ 6.26 | ||||
| 3 | 61002234 | Retainer, Evaporator Fan | 10 |
|
- | ||||
| 3 | WP489399 | Screw (Replaces: 61001885) | 10 |
|
$ 6.26 | ||||
| 4 | 61002235 | Bushing, Evaporator Fan | 10 |
|
- | ||||
| 5 | 61004522 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 6 | 61003898 | Shroud, Fan | 10 |
|
- | ||||
| 7 | WP854334 | Seal, Fan Shroud (Replaces: 61003828) | 10 |
|
$ 11.95 | ||||
| 8 | 12001641 | Evap/heat Exch,assy27,29,cdsxs | 10 |
|
$ 317.39 | ||||
| 9 | 61003215 | Bracket, Evaporator (lt) | 10 |
|
- | ||||
| 10 | 61003216 | Bracket, Evaporator (rt) | 10 |
|
- | ||||
| 11 | 61003213 | Block, Air | 10 |
|
- | ||||
| 12 | WP61006199 | Heater & Therm. Assy., Defrost (Replaces: 61004310) | 10 |
|
Immediately | $ 62.17 | |||
| 13 | WP67005457 | Clip, Defrost Heater (Replaces: 61004152) | 10 |
|
$ 9.61 | ||||
| 14 | 61003830 | Housing, Evaporator | 10 |
|
- | ||||
| 15 | 61004424 | Screw | 10 |
|
- | ||||
| 15 | 61004205 | Cover, Coil (upper) | 10 |
|
- | ||||
| 16 | WP854334 | Seal, Upper Cover (lt) (Replaces: 61003832) | 10 |
|
$ 11.95 | ||||
| 16 | WP854334 | Seal, Upper Cover (rt) (Replaces: 61003833) | 10 |
|
$ 11.95 | ||||
| 17 | 61003834 | Seal, Upper Cover (top) | 10 |
|
- | ||||
| 18 | 61003835 | Cover, Evaporator Fan | 10 |
|
- | ||||
| 19 | WP854334 | Seal (Replaces: 61003209) | 10 |
|
$ 11.95 | ||||
| 20 | 61003836 | Cover, Coil (lwr) | 10 |
|
- | ||||
| 20 | 61004424 | Screw | 10 |
|
- | ||||
| 21 | WP854334 | Seal (Replaces: 61003212) | 10 |
|
$ 11.95 | ||||
| 22 | 61003837 | Seal, Lower Cover | 10 |
|
- | ||||
| 23 | 61001952 | Plug Button, Evap. Cover | 10 |
|
- | ||||
| 24 | 61003198 | Slinger, Disc | 10 |
|
- | ||||
| 25 | WP61002140 | Tray, Ice (Replaces: 61002140) | 10 |
|
$ 18.23 | ||||
| 26 | 61002177 | Pan, Ice | 10 |
|
- | ||||
| 27 | 61002027 | Cap, I/m Wire Harness | 10 |
|
- | ||||
| 28 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 29 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 30 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 31 | 61002272 | Shield, Light | 10 |
|
- | ||||
| 32 | 61003838 | Trim, Shelf (frt) | 10 |
|
- | ||||
| 33 | 61004112 | Shelf, Frz. (upr) | 10 |
|
- | ||||
| 33 | 61004113 | Shelf, Frz. (middle) | 10 |
|
- | ||||
| 34 | 61004114 | Basket, Frz. | 10 |
|
- | ||||
| 35 | 61003205 | Diverter, Air | 10 |
|
- | ||||
| 35 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 36 | 61003206 | Seal, Air Diverter | 10 |
|
- | ||||
| 37 | 61004116 | Basket, Frz. | 10 |
|
- | ||||
| 38 | 61002026 | Cap, Fill Tube | 10 |
|
- | ||||
| 39 | 61003955 | Wire Harness, Fan & Heater | 10 |
|
- | ||||
| 39 | 61003197 | Wire Harness, Frz. | 10 |
|
- |
