SELECT A DIAGRAM

01 - Compressor


02 - Controls


03 - Freezer Compartment


04 - Freezer Inner Door


05 - Freezer Outer Door


06 - Fresh Food Inner Door


07 - Fresh Food Outer Door


08 - Optional Ice Maker Kit-uki2500axx


09 - Shelves & Accessories


10 - Wiring Information

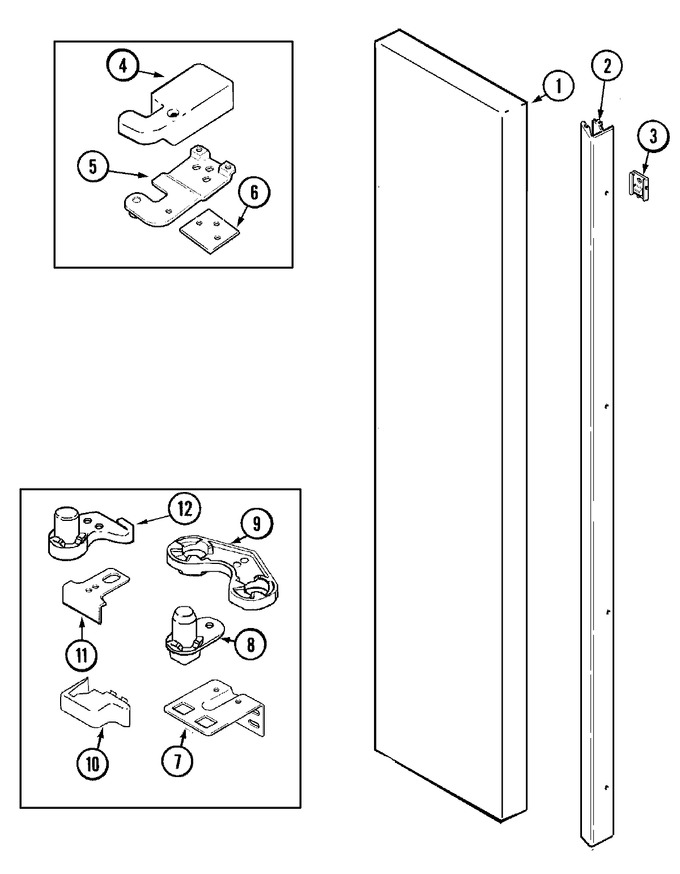

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005542		Panel, Frz. Door (stnls)	10	Appelez-nous	-
1	61006226		Panel, Frz. Door (stnls)	19	Appelez-nous	-
1	61005817		Panel, Frz. Door (stnls)	11	Appelez-nous	-
2	61004393		Screw (stnls)	10	Appelez-nous	-
2	61004258		Handle, Door (stnls)	10	Appelez-nous	-
3	61004179		Base, Handle	10			$ 5.02
3	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
4	12001982		Cover, Upper Hinge (slv)   (Replaces: 61004298)	10			$ 56.05
5	61004194		Hinge, Upper	10	Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
6	61001922		Shim, Upper Hinge	10			$ 0.71
7	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
7	61004713		Hinge, Lower (blk)	10	Appelez-nous	-
8	61003174		Pin, Lower Hinge	10			$ 6.22
9	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
9	61003647		Closer, Door (natural)	10			$ 10.19
10	61004178		Cover, Lower Hinge (blk)	10	Appelez-nous	-
11	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
11	61004120		Stop, Door	10	Appelez-nous	-
12	61005726		Closer, Door (w/cup)	11			$ 27.14
12	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98

    View Diagram in Separate Window       Print Part List
