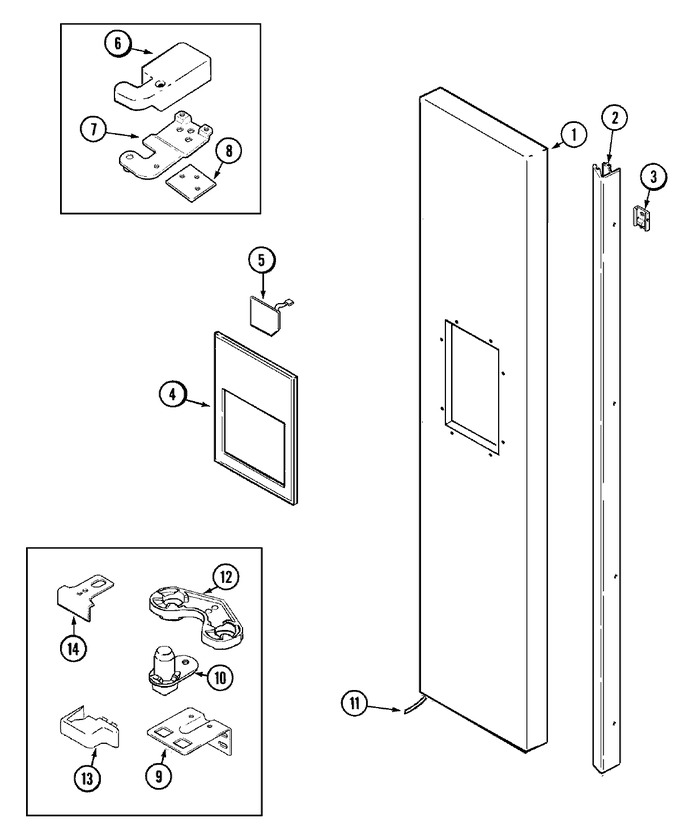

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004297		Panel, Frz. Door (stls)	10	Appelez-nous	-
2	61004258		Handle, Door (stnls)	10	Appelez-nous	-
2	61004185		Screw	10	Appelez-nous	-
3	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
3	61004179		Base, Handle	10			$ 5.02
4	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
4	61003769		Escutcheon (blk)	10	Appelez-nous	-
5	61003422		Screw	10	Appelez-nous	-
5	61003421		Board, Ftn. Switch	10			$ 163.74
6	12001982		Cover, Upper Hinge (slv)   (Replaces: 61004298)	10			$ 56.05
6	61003276		Screw	10	Appelez-nous	-
7	61004194		Hinge, Upper	10	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	61004176		Hinge, Lower (blk)	10	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61001614)	10		Immediately	$ 26.15
11	61003852		Tubing, Fountain	10	Appelez-nous	-
12	61003647		Closer, Door (natural)	10			$ 10.19
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
13	61004178		Cover, Lower Hinge (blk)	10	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
14	61004120		Stop, Door	10	Appelez-nous	-
