SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

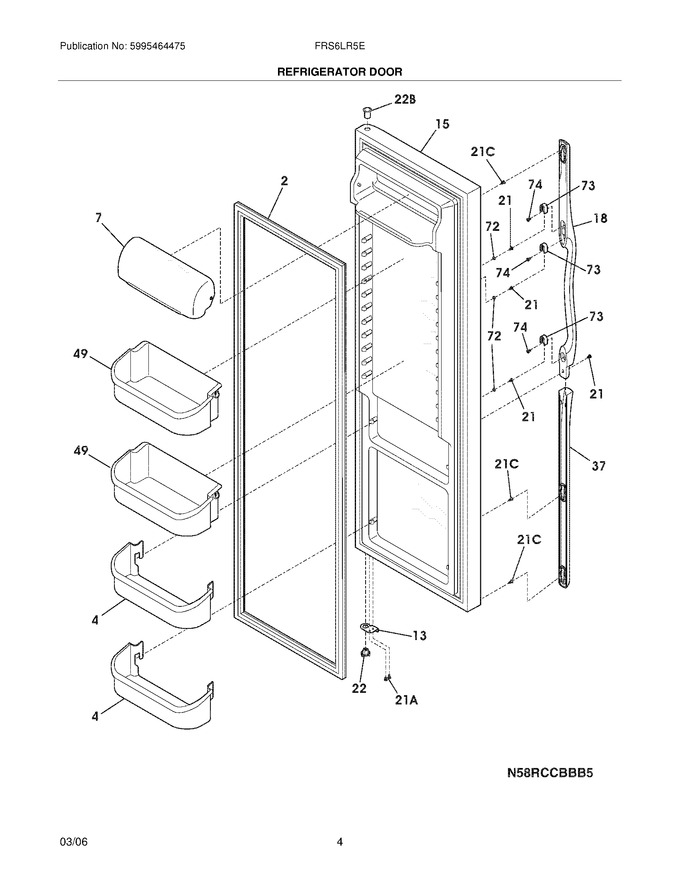

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	240581903		Door Stop,bisque ,ref				$ 29.87
15	240451904		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	240359104		Handle-door,bisque		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	240359204		Trim-handle,30.13`` ,bisque ,lower				$ 33.44
49	240356401		Bin-door,gallon			Immediately	$ 85.64
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241674801)				$ 95.90

    View Diagram in Separate Window       Print Part List
