Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 61005756 Panel, Frz. Door (stnls) 24 Appelez-nous -
1 61005756 Panel, Frz. Door (stnls) 12 Appelez-nous -
1 61005529 Panel, Frz. Door (stnls) 10 Appelez-nous -
1 61006115 Panel, Frz. Door (stnls) 25 Appelez-nous -
1 61006115 Panel, Frz. Door (stnls) 20 Appelez-nous -
2 61004258 Handle, Door (stnls) 10 Appelez-nous -
2 61004393 Screw (stnls) 10 Appelez-nous -
3 61004179 Base, Handle 10 Special Order $ 5.02

3 W10856122 Screw   (Replaces: 61002180) 10 Special Order $ 6.98

4 489392 Screw   (Replaces: 415013-35) 10 Special Order $ 12.02

4 61005056 Escutcheon (blk) 10 Appelez-nous -
5 WP61005277 Board, Ftn. Switch   (Replaces: 61005277) 10 Special Order $ 126.29

5 61003422 Screw 10 Appelez-nous -
6 12001982 Cover, Upper Hinge (slv)   (Replaces: 61004298) 10 Special Order $ 56.05

6 WP8281196 Screw, Cover   (Replaces: 61004641) 10 In-Stock Immediately $ 6.47

7 61004194 Hinge, Upper 10 Appelez-nous -
7 WP3-24838-048 Screw   (Replaces: 61004763) 10 Special Order $ 7.00

8 61001922 Shim, Upper Hinge 10 Special Order $ 0.71

9 3400112 Screw   (Replaces: 61003128) 10 Special Order $ 62.96

9 61004713 Hinge, Lower (blk) 10 Appelez-nous -
10 61003174 Pin, Lower Hinge 10 Special Order $ 6.22

11 61004569 Tubing, Fountain 10 Appelez-nous -
11 WP2300868 Union, Reducing (5/16``-5/16``)   (Replaces: 61001614) 10 In-Stock Immediately $ 26.15

12 61003647 Closer, Door (natural) 10 Special Order $ 10.19

12 W10856122 Screw   (Replaces: 61002180) 10 Special Order $ 6.98

13 61004178 Cover, Lower Hinge (blk) 10 Appelez-nous -
14 61004120 Stop, Door 10 Appelez-nous -
14 W10856122 Screw   (Replaces: 61002180) 10 Special Order $ 6.98

15 61005726 Closer, Door (w/cup) 12 Special Order $ 27.14

15 W10856122 Screw   (Replaces: 61002180) 12 Special Order $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

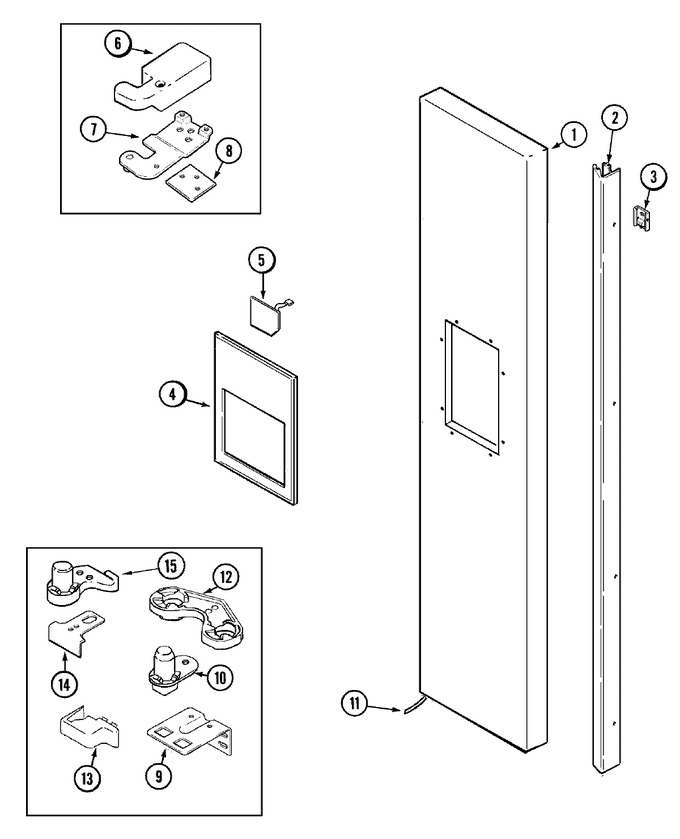

Diagram for JCD2389GES
