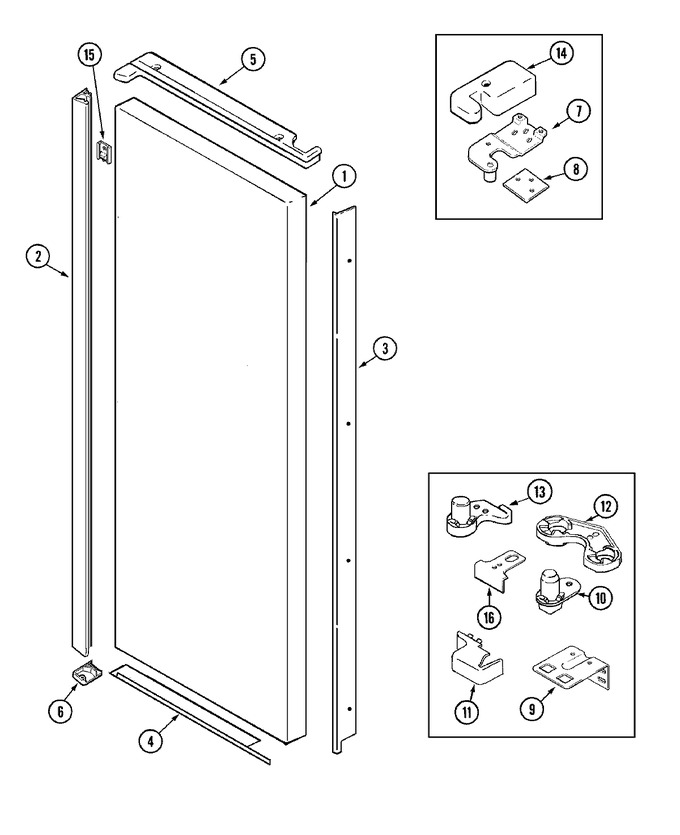

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61006217		Label, Dual Energy Guide	10	Appelez-nous	-
1	61004513		Panel, F.f. Door (blk)	10	Appelez-nous	-
1	61005806		Panel, F.f. Door (blk)	12	Appelez-nous	-
2	61004208		Handle, F.f. Door (slv)	10	Appelez-nous	-
2	61004345		Screw (no.8-18 Type Ab)	10	Appelez-nous	-
3	61004346		Screw (no.8 Philhead)	10	Appelez-nous	-
3	61004209		Trim, Perimeter (side-slv)	10	Appelez-nous	-
4	61004210		Trim, Perimeter (btm-slv)	10	Appelez-nous	-
4	61004346		Screw (no.8 Philhead)	10	Appelez-nous	-
5	61004396		Screw	10	Appelez-nous	-
5	61004211		Cap, Top (slv)	10	Appelez-nous	-
5	61004173		Screw	10	Appelez-nous	-
6	61004212		End Cap, Handle (slv)	10	Appelez-nous	-
6	WP59002061		Screw   (Replaces: 61004172)	10			$ 6.98
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
7	61004174		Hinge, Upper	10	Appelez-nous	-
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
9	61004713		Hinge, Lower (blk)	10	Appelez-nous	-
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	61004196		Cover, Lower Hinge (blk)	10	Appelez-nous	-
12	61003647		Closer, Door (natural)	10			$ 10.19
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
13	61005724		Closer, Door (w/cup)	12			$ 23.79
13	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98
14	61004715		Cover, Upper Hinge (blk)	10	Appelez-nous	-
15	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
15	61004179		Base, Handle	10			$ 5.02
16	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
16	61004120		Stop, Door	10	Appelez-nous	-
