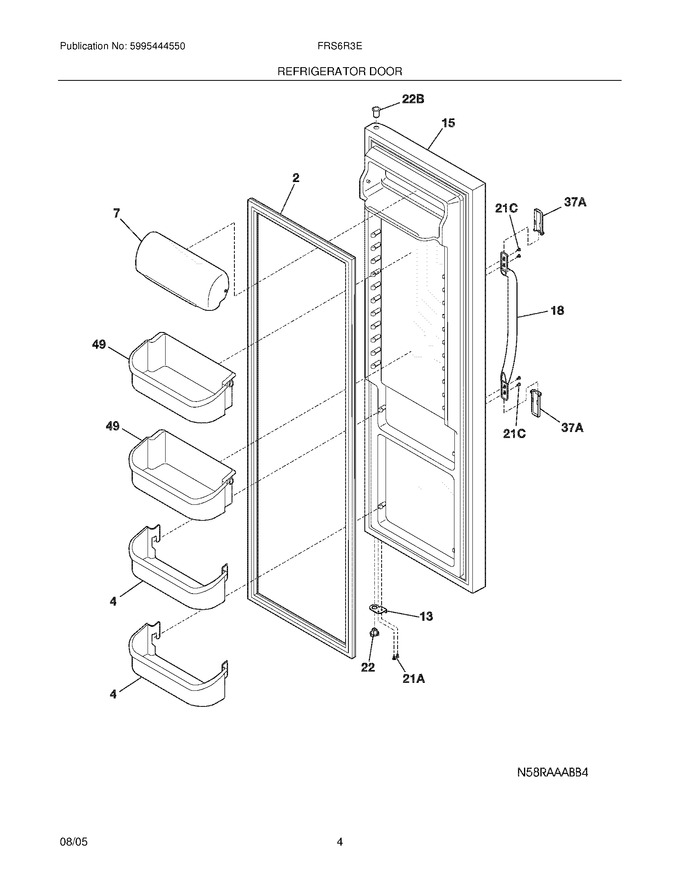

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	240451902		Door-refr,white ,complete Assy		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22B	240328401		Bearing-hinge(ref),natural ,upper				$ 12.97
37A	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37A	215870629		Trim-handle,2.47`` ,white ,w/satin Al Band				$ 55.99
F2	241569801		Gasket-refr Door,white ,magnetic		Appelez-nous	-
