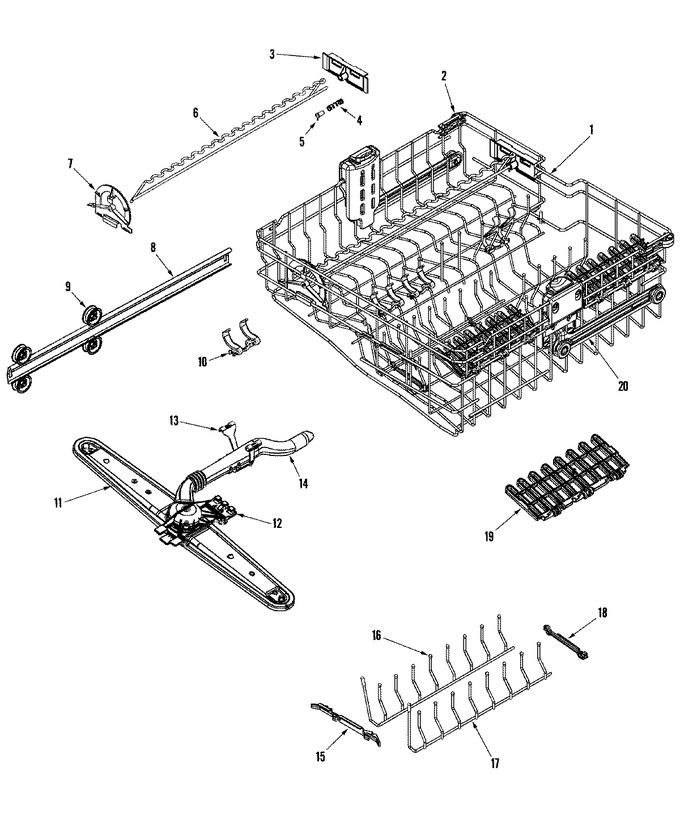

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002705 | Rack Assembly (upr) | 10 |
|
- | ||||
| 1 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 2 | 99002853 | Snugger, Rack | 10 |
|
$ 6.02 | ||||
| 3 | 99002712 | Varilock (rear) | 10 |
|
$ 6.51 | ||||
| 4 | 99002715 | Spring, Varilock | 10 |
|
- | ||||
| 5 | 99002714 | Cup, Varilock | 10 |
|
$ 46.60 | ||||
| 6 | 99002713 | Support, Varilock | 10 |
|
- | ||||
| 7 | 99002711 | Varilock (frt) | 10 |
|
- | ||||
| 8 | 99002621 | Track, Rack | 10 |
|
$ 56.82 | ||||
| 8 | WPW10261227 | Stop, Rack (gray) (Replaces: 99002623) | 10 |
|
Immediately | $ 6.93 | |||
| 9 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 10 |
|
$ 6.90 | ||||
| 9 | WP99002947 | Wheel, Tub (Replaces: 99002622) | 10 |
|
Immediately | $ 10.58 | |||
| 9 | WP99002947 | Shaft, Tub Wheel (Replaces: 99002343) | 10 |
|
Immediately | $ 10.58 | |||
| 10 | 99002696 | Clip, Cup (blue) | 10 |
|
$ 92.17 | ||||
| 11 | 99002740 | Screw, Truss Head (10-18x.75) | 10 |
|
$ 6.24 | ||||
| 11 | 99002624 | Arm, Wash (upr) | 10 |
|
$ 32.72 | ||||
| 12 | 99002669 | Clip, Upr Wash Manifold (frt) | 10 |
|
$ 5.84 | ||||
| 13 | 99002670 | Clip, Upr Wash Manifold (back) | 10 |
|
- | ||||
| 14 | 99002679 | Wash Manifold Assy (upr) | 10 |
|
- | ||||
| 15 | WP99002710 | Latch, Fold Away Tine (Replaces: 99002710) | 10 |
|
$ 7.00 | ||||
| 16 | 99002708 | Tine, Fold Away (lt) | 10 |
|
- | ||||
| 17 | 99002707 | Tine, Fold Away (rt) | 10 |
|
- | ||||
| 18 | WP99002709 | Pivot, Fold Away Tine (Replaces: 99002709) | 10 |
|
Immediately | $ 7.15 | |||
| 19 | 99002716 | Shelf, Cup (upr-short) | 10 |
|
- | ||||
| 20 | 99002783 | Adjuster, Rack (rt) | 10 |
|
- | ||||
| 20 | 99002782 | Adjuster, Rack (lt) | 10 |
|
- |
