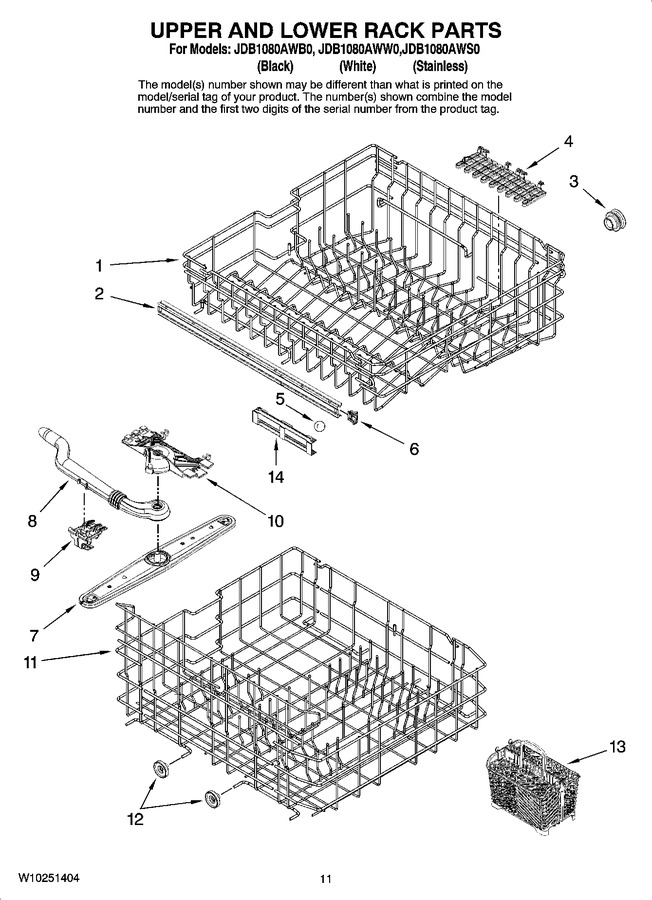

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214025 | Dishrack, Upper |
|
- | |||||
| 2 | W10144736 | Rail, Inner Slide |
|
$ 38.06 | |||||
| 3 | WP99003148 | Wheel Assembly (Replaces: 99003148) |
|
Immediately | $ 8.51 | ||||
| 4 | 99003252 | Shelf, Cup |
|
- | |||||
| 5 | 99003068 | Bearing, Ball |
|
$ 5.83 | |||||
| 6 | W10169391 | Stop, Rail |
|
$ 5.85 | |||||
| 7 | 99003070 | Wash Arm |
|
$ 32.43 | |||||
| 8 | 99003142 | Wash Manifold Assembly |
|
- | |||||
| 9 | 99003071 | Clip, Upper Wash Manifold (back) |
|
$ 19.68 | |||||
| 10 | 99003072 | Clip, Upper Wash Manifold (front) |
|
$ 5.25 | |||||
| 11 | W10203929 | Dishrack, Lower |
|
- | |||||
| 11 | W10213297 | Dishrack, Lower |
|
$ 72.87 | |||||
| 12 | WP99003149 | Wheel Assembly (lower) (Replaces: 6-918869) |
|
Immediately | $ 11.48 | ||||
| 13 | WP6-918873 | Basket, Silverware (Replaces: W10187637) |
|
Immediately | $ 54.28 | ||||
| 14 | 99003069 | Cage, Ball Bearing |
|
$ 6.26 |
