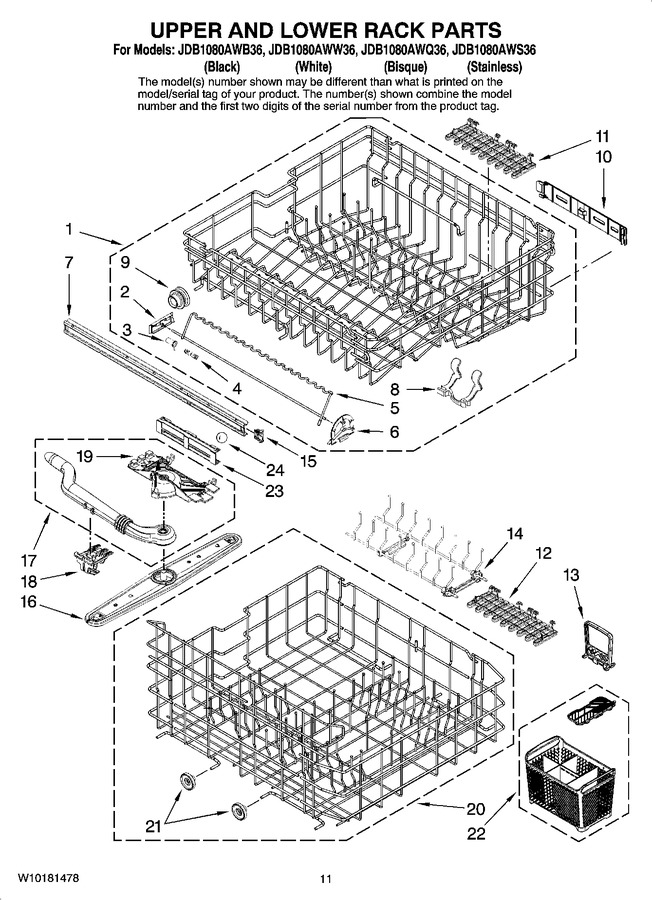

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003216		Dishrack, Upper Assembly		Appelez-nous	-
2	99003109		Rear, Varilock		Appelez-nous	-
3	99003111		Cup, Varilock		Appelez-nous	-
4	99002715		Spring, Varilock		Appelez-nous	-
5	99003110		Support, Varilock		Appelez-nous	-
6	99003108		Front, Varilock		Appelez-nous	-
7	99003066		Rail, Inner Slide		Appelez-nous	-
8	99003107		Clip, Cup		Appelez-nous	-
9	WP99003148		Wheel Assembly   (Replaces: 99003148)			Immediately	$ 8.51
10	99003064		Guard, Rack (low Side)				$ 6.06
10	99003063		Guard, Rack (high Side)				$ 6.23
11	99003065		Shelf, Cup (long)				$ 9.71
12	99003074		Shelf, Cup (lower)				$ 5.02
13	99003077		Handle, Silverware Basket		Appelez-nous	-
14	99003578		Tine, Folding Assembly		Appelez-nous	-
15	WP99003282		Stop, Rail   (Replaces: 99003282)			Immediately	$ 7.04
16	99003070		Wash Arm (upper)				$ 32.43
17	99003142		Wash Manifold Assembly		Appelez-nous	-
18	99003071		Clip, Upper Wash Manifold (back)				$ 19.68
19	99003072		Clip, Upper Wash Manifold (front)				$ 5.25
20	99003073		Dishrack, Lower Assy (incl Wheels)		Appelez-nous	-
21	WP99003149		Wheel Assembly (lower)   (Replaces: 99003149)			Immediately	$ 11.48
22	WP6-918873		Basket, Silverware (includes Lid)   (Replaces: 99003075)			Immediately	$ 54.28
23	99003069		Cage, Ball Bearing				$ 6.26
24	99003068		Bearing, Ball				$ 5.83
