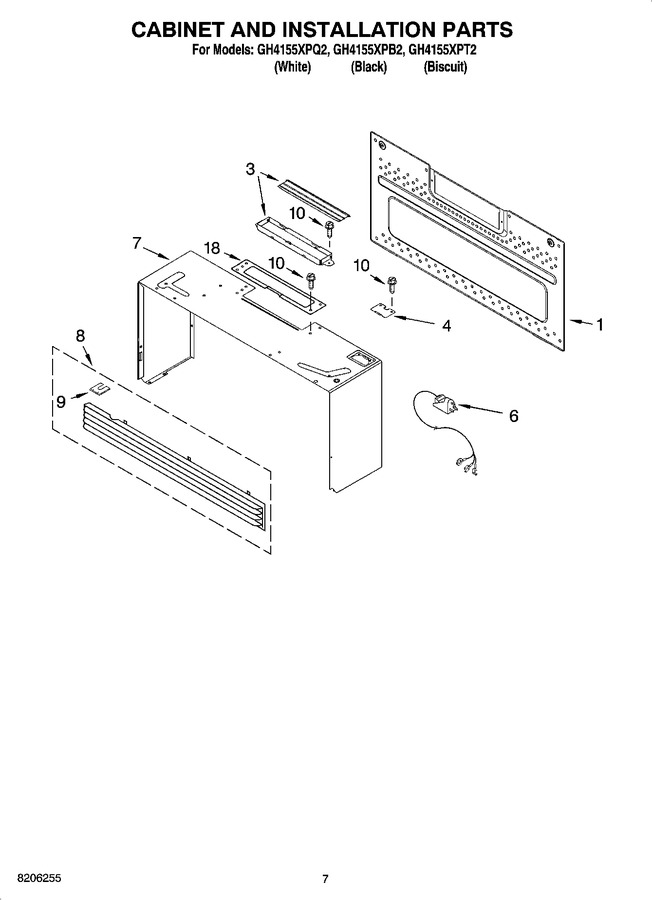

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8206174 | Plate, Mounting (Replaces: 8206174) |
|
$ 30.99 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8205558) |
|
Immediately | $ 65.74 | ||||
| 4 | 8184313 | Lid, Power Cord |
|
- | |||||
| 6 | 8184898 | Cord, Power |
|
- | |||||
| 7 | 8169664 | Case, Outer (biscuit) |
|
- | |||||
| 7 | 8169660 | Case, Outer (white) |
|
- | |||||
| 7 | 8169661 | Case, Outer (black) |
|
- | |||||
| 8 | 8183852 | Grille, Vent (biscuit) |
|
$ 67.04 | |||||
| 8 | 8183948 | Grille, Vent (white) |
|
$ 78.26 | |||||
| 8 | 8183851 | Grille, Vent (black) |
|
Immediately | $ 82.20 | ||||
| 9 | 8206334 | Grille, Holder (Replaces: 4393795) |
|
$ 6.47 | |||||
| 10 | 4393833 | Screw |
|
$ 6.79 | |||||
| 18 | N/A | Miscellaneous |
|
- | |||||
| 18 | 8205846 | Hood Light Wire Assemlby |
|
- | |||||
| 18 | 8205847 | H.v. Wire Assy |
|
- | |||||
| 18 | 8205635 | Ground Wire Assy. |
|
- | |||||
| 18 | 8169697 | Plate, Damper |
|
- | |||||
| 18 | 8171337 | Filler Kit-white |
|
- | |||||
| 18 | 8171336 | Filler Kit-black |
|
- | |||||
| 18 | 8171338 | Filler Kit-biscuit |
|
- | |||||
| 18 | 8205947 | Hardware, Installation |
|
$ 88.07 | |||||
| 18 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| 18 | 8184781 | Upper Template |
|
- | |||||
| 18 | 8204725 | Rack |
|
- | |||||
| 18 | 8205843 | Cavity Light Wire Assembly |
|
- | |||||
| 18 | 8205844 | Fan Motor Wire Assembly |
|
- | |||||
| 18 | 8205845 | Stirrer Motor Wire Assembly |
|
- |
