Diagram for 01 - Control Panel Parts
01 - Control Panel Parts

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Interior And Ventilation Parts
03 - Interior And Ventilation Parts

Diagram for 04 - Air Flow Parts
04 - Air Flow Parts

Diagram for 05 - Magnetron And Turntable Parts
05 - Magnetron And Turntable Parts

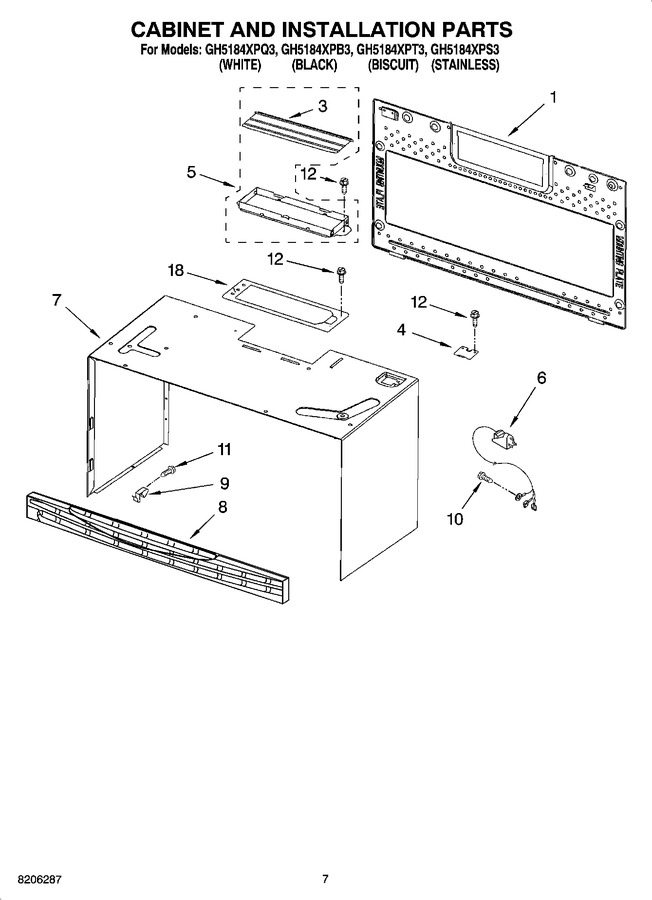

Diagram for 06 - Cabinet And Installation Parts
06 - Cabinet And Installation Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8206172 Plate, Mounting Appelez-nous -
3 W10843943 Door, Damper   (Replaces: 4393713) In-Stock Immediately $ 65.74

4 8184897 Lid, Power Cord Appelez-nous -
5 W10843943 Frame, Damper   (Replaces: 8183858) In-Stock Immediately $ 65.74

6 8184898 Cord, Power Appelez-nous -
7 8205213 Case, Outer (biscuit) Appelez-nous -
7 8205207 Case, Outer (white) Appelez-nous -
7 8205212 Case, Outer (black) Appelez-nous -
8 W10450172 Grille, Vent (white)   (Replaces: 8205214) Special Order $ 69.96

8 8205216 Grille, Vent (biscuit) Appelez-nous -
8 8205217 Grille, Vent (stainless) Appelez-nous -
8 W10450187 Grille, Vent (black)   (Replaces: 8205215) In-Stock Immediately $ 69.96

9 W10615742 Clip, Grille   (Replaces: 8184190) Special Order $ 7.38

10 4393836 Screw Appelez-nous -
11 8169475 Screw Special Order $ 6.64

12 4393472 Screw Appelez-nous -
18 WP8169704 Screw, Top Mountng   (Replaces: 8169704) In-Stock Immediately $ 10.07

18 8169697 Plate, Damper Appelez-nous -
18 N/A Miscellaneous Appelez-nous -
18 8205947 Installation, Hardware Special Order $ 88.07

18 8184781 Template, Upper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for GH5184XPB3
