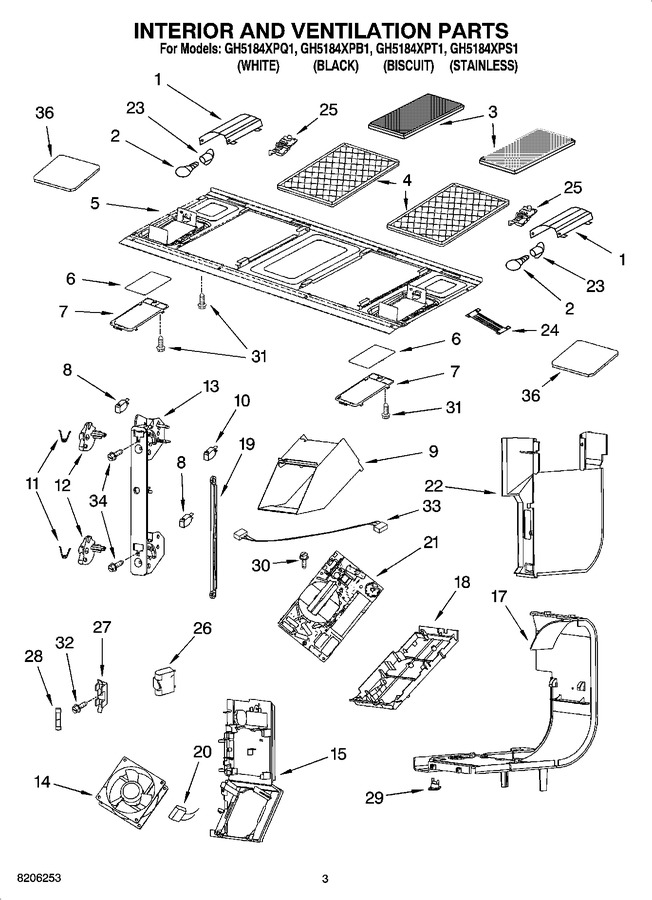

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205096		Reflector, Lamp		Appelez-nous	-
2	8206232A		Lamp   (Replaces: 8183993)			Immediately	$ 6.61
3	W10112514A		Filter, Charcoal   (Replaces: 8184002)			Immediately	$ 26.06
4	W10113040A		Filter, Grease   (Replaces: 8184003)			Immediately	$ 21.43
5	8205412		Plate, Bottom		Appelez-nous	-
6	8184141		Glass, Lamp				$ 34.66
7	8184889		Holder, Glass		Appelez-nous	-
8	W10211974		Switch, Micro Primary/secondary   (Replaces: 4393599)			Immediately	$ 54.40
9	8184124		Cover, Inverter		Appelez-nous	-
10	W10211972		Switch, Micro   (Replaces: 4393697)			Immediately	$ 47.16
11	8169438		Spring, Interlock				$ 10.69
12	8205211		Plate, Cam		Appelez-nous	-
13	8185189		Support, Interlock				$ 36.40
14	8184875		Fan, Dc 12 Volt				$ 83.80
15	8184894		Housing, Fan		Appelez-nous	-
17	8185032		Bracket, Holder		Appelez-nous	-
18	8184670		Holder, Inverter		Appelez-nous	-
19	8185190		Rod-locking Link		Appelez-nous	-
20	8184093		Capacitor, 125 V		Appelez-nous	-
21	W10217710		Inverter 1100 W   (Replaces: 8205093)				$ 306.58
22	8185031		Plate, Side		Appelez-nous	-
23	8184926		Holder, Lamp		Appelez-nous	-
24	8184887		Cable		Appelez-nous	-
25	8184202		Cover, Terminal		Appelez-nous	-
26	8184204		Capacitor		Appelez-nous	-
27	8184312		Holder, Fuse		Appelez-nous	-
28	W11707984		Fuse   (Replaces: 4393308)			Immediately	$ 41.27
29	8183998		Thermostat				$ 45.64
30	8184199		Screw		Appelez-nous	-
31	4393835		Screw				$ 11.83
32	8184200		Screw		Appelez-nous	-
33	W10615910		Ribbon Cable (p2 To Cn701 On 1100 W Inverter)   (Replaces: 8205014)				$ 211.70
34	8169479		Screw   (Replaces: 8169477)				$ 6.26
36	8184203		Foil, Lamp		Appelez-nous	-
