SELECT A DIAGRAM

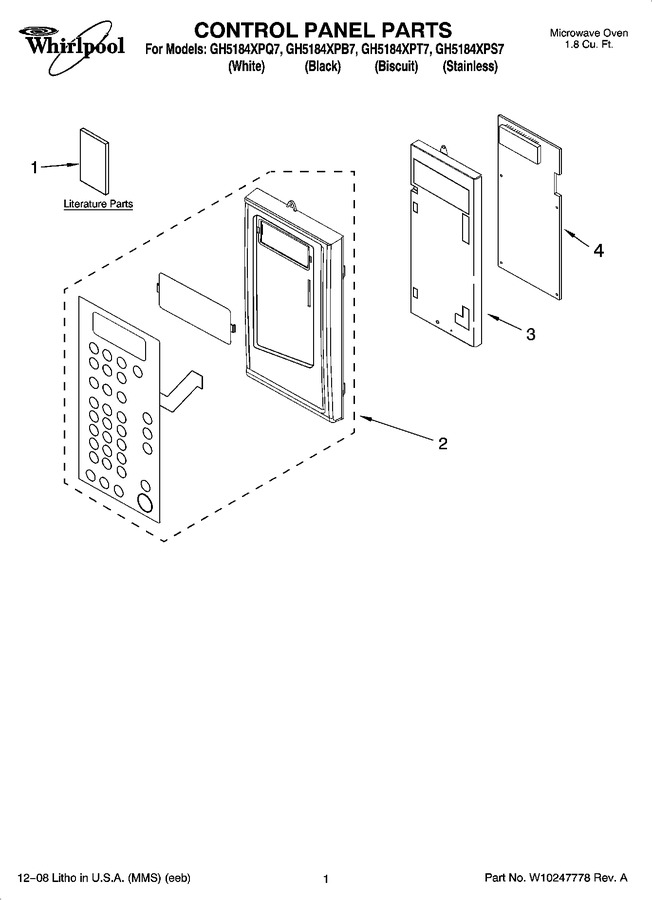

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10170440		U & C Guide		Appelez-nous	-
1	W10132015		Tech Sheet		Appelez-nous	-
1	8206579		Instrctn, Instlltn		Appelez-nous	-
1	8205195		Cook Guide Label		Appelez-nous	-
2	W10246264		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
2	W10247211		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
2	W10247210		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
2	W10247212		Panel Asy, Control Includes Lens And Membrane Switch (stainless)		Appelez-nous	-
3	W10114256		Bracket, Control		Appelez-nous	-
4	8205421		Microcomputer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
