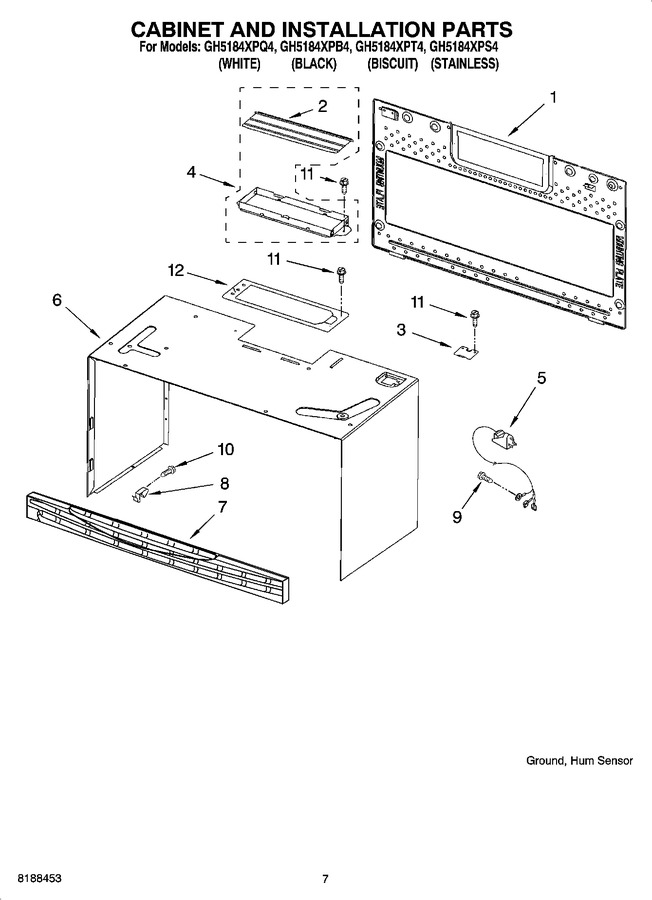

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10269225		Plate, Mounting   (Replaces: 8206315)				$ 69.20
2	W10843943		Door, Damper   (Replaces: 8205741)			Immediately	$ 65.74
3	8184897		Lid, Power Cord		Appelez-nous	-
4	W10843943		Frame, Damper   (Replaces: 8206442)			Immediately	$ 65.74
5	8205640		Cord, Power				$ 67.56
6	8205397		Case, Outer (white)		Appelez-nous	-
6	8205398		Case, Outer (black)		Appelez-nous	-
6	8205399		Case, Outer (biscuit)		Appelez-nous	-
7	8205217		Grille, Vent (stainless)		Appelez-nous	-
7	W10450172		Grille, Vent (white)   (Replaces: 8205214)				$ 69.96
7	W10450187		Grille, Vent (black)   (Replaces: 8205215)			Immediately	$ 69.96
7	8205216		Grille, Vent (biscuit)		Appelez-nous	-
8	W10615742		Clip, Grille   (Replaces: 8184190)				$ 7.38
9	4393836		Screw		Appelez-nous	-
10	8169475		Screw				$ 6.64
11	4393472		Screw		Appelez-nous	-
12	W10114265		Harns-wire Cavity Therm 2-3		Appelez-nous	-
12	W10110602		Harns-wire Filter Capacitor		Appelez-nous	-
12	W10110600		Harns-wire Magnetron		Appelez-nous	-
12	W10114263		Harns-wire Ground, Inverter		Appelez-nous	-
12	W10110601		Harns-wire Ground, Main		Appelez-nous	-
12	W10111830		Harns-wire Ground, Hum Sensor		Appelez-nous	-
12	W10615910		Harns-wire Pcb To Inverter   (Replaces: 8205014)				$ 211.70
12	W10114264		Harns-wire Cavity Therm 1-2		Appelez-nous	-
12	W10110597		Plate, Damper		Appelez-nous	-
12	8205947		Installation, Hardware				$ 88.07
12	8184781		Template, Upper		Appelez-nous	-
12	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 10.07
12	W10114260		Harns-wire Ac Line Filter		Appelez-nous	-
12	W10114261		Harns-wire, Main		Appelez-nous	-
12	W10114262		Harns-wire Lamp/tt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
